点击放大查看

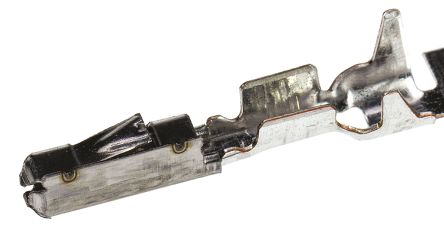

965906-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Micro-Power & Power Quadlok System CONN SOCKET 18AWG TIN Crimp Contact female 20-18.5 awg Automotive Connectors MQS SKT 20-18 BR/SN Reel of 9000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NonePre Tin Contact FinishWire Range = 0.50-0.75² [20-18.5] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONTACT, SOCKET, 0.5 - 0.75 MM2, CRIMP CONTACT, CRIMP, SOCKET, 18AWG, REEL CrimpContactfemale20-18.5awg TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 产品 | Contacts | 零件号别名 | 965906-1 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 深度 | 3.5 mm | 间距 | Not Required mm |
| 高度 | 3.4 mm | 重量 | 0.02 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 18-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 触头材料 | :- | 壳体材料 | Not Required |
| 总长度 | 14.6 mm | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | Not Required |
| 接触件端接 | Crimp | 位数 | 1 |
| 线规或范围 - AWG | 20-18 | 线规或范围 - mm² | :0.75mm² |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | :- | 适用产品/相关产品 | :Micro-Power and Power Quadlok System |
