点击放大查看

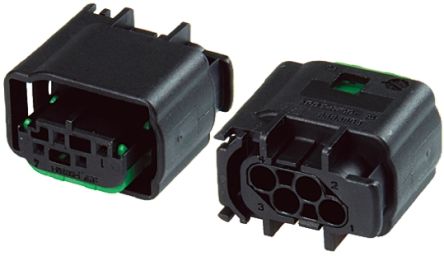

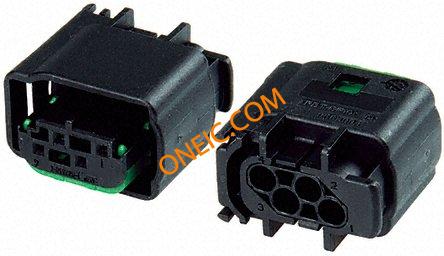

1-967640-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS Crimp ST MQS - Connectors CONN SOCKET HSNG 4POS BLACK Housing FH 4 way Rec Quadlock Automotive Connectors HSG PLG 2X02C F/H BLK Conn Housing RCP 4 POS Crimp ST Product Highlights:HousingNumber of Positions = 4Without Tab ContactsWithout 2.5mm Pin Diameter ContactsWithout Fiber Optic ContactsSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, MQS BU-GEH EDS, SW4P HousingFH4wayRecQuadlock Connector: rectangular; MQS; plug; female; w/o terminals; PIN:4 TE Connectivity Micro Quadlock System 系列 2行 4路 黑色 母 外壳 MQS BU-GEH EDS,SW4P |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1700 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - MQS Series | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 24.2mm |
| 间距 | :3.1mm | 宽度 | 15.3mm |
| 高度 | 23.2mm | 重量 | 0.004 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | PBT |
| 包装数量 | 1 | 主要材料 | Receptacle |
| 连接器 - 电缆 | plug | 连接器颜色 | Black |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 制造商全称 | MQSSeries | 适配器系列 | Micro Quadlock System |
| 单元数量 | 50 | ||
