1-967584-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Loose Piece MQS - Connectors CONN PLUG HSNG 4POS BLACK Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingNumber of Positions = 4Contact Style = MQS4 MQS ContactsHousing Type = PlugSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, MQS ST-GEH EDS4P,SW
分类	连接器解决方案矩形连接器电源混合矩形连接器

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	12, 24	供电电压	24
连接器阻抗	否

机械参数

颜色	Black	间距	2.54 mm
宽度	40.1 mm [ 1.579 in ]	高度	12.8 mm [ 0.504 in ]
长度	19.5 mm [ .768 in ]	包装方式	Bulk
出线方向	否	触头类型	Male Pin
安装类型	Straight	连接器类型	Plug
排数	2	端子样式	Yes
锁定特性	On the terminal	安装特性	Yes
主要材料	PBT GF	连接器 - 电缆	No
连接器间距	.217, .234, .299	触点数	4
位数	4	法兰上方插针尺寸	.63 mm [ .025 in ]

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Sealed
极性	是	可密封	是
可维修	Yes	其他规格	GEN
应用细节	Signal

环境参数

工作温度

-40 – 120 °C [ -40 – 248 °F ]

文档与媒体

1-967584-1?RQPN=1-967584-1

相关型号

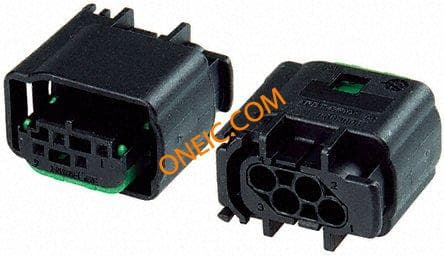

1-967640-1
