点击放大查看

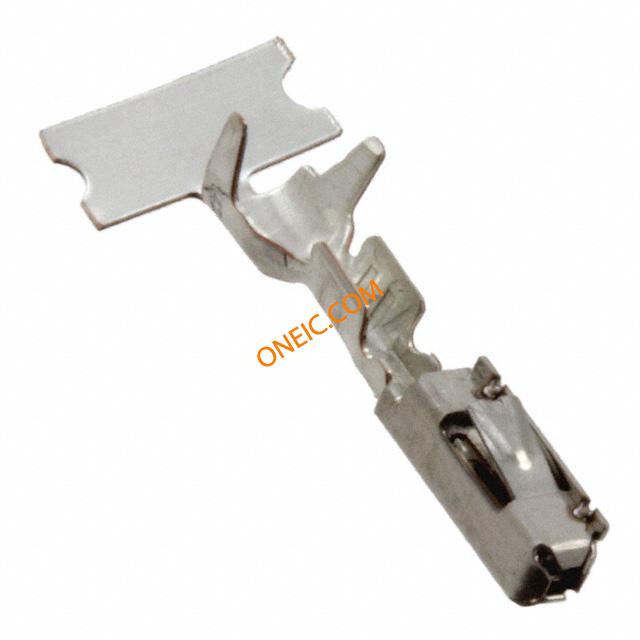

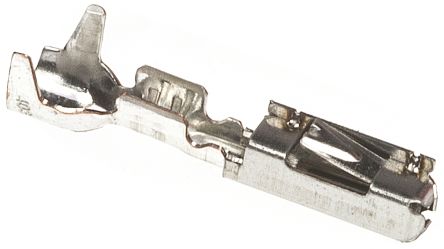

962885-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Automotive Connectors MQS SOCKET CONT Micro-Power & Power Quadlok System CONN RCPT CONT 20-23AWG TIN Contact, Socket, Quadlock, 23-20AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NoneTin Contact FinishWire Range = 0.25-0.60² [23-20] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONTACT, TIN RECEPT., CRIMP CONTACT, CRIMP, SOCKET, 32-24AWG, REEL Contact,Socket,Quadlock,23-20AWG Contact; female; 0.25÷0.35mm2; MQS; tinned; crimped; for cable TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A105237CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 7.5 A | 连接器类型 - 电压输入 | sealed |
机械参数
| 间距 | Not Required mm | 重量 | 0.00227 |
| 包装方式 | Reel | 导线线规 | 20-23 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | Wire | 触头材料 | Copper-Nickel-Silicon |
| 壳体材料 | Not Required | 包装数量 | 1 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | 1 POS |
| 接触件端接 | Crimp | 位数 | 1 |
| 线规或范围 - AWG | 23-20 | 线规或范围 - mm² | 0.25...0.35mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | :- |
| 已删除 | Compliant | 适配器系列 | Micro Quadlock System |
| 端口数 | 1 Port | 单元数量 | 1 |
| 适用产品/相关产品 | :Micro-Power and Power Quadlok System | ||
环境参数
| 工作温度 | +120°C | 可用温度范围 | -40to+120°C |
| 结工作温度 | 120C | ||
