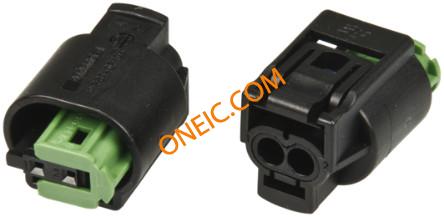

1-967644-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4mm Crimp ST Micro-Power & Power Quadlok System CONN SOCKET HOUSING MQS 2POS Conn housing fem. 2 way 4mm 180° Automotive Connectors MQS BU-GEH EDS SW2P Conn Housing RCP 2 POS 4mm Crimp ST Product Highlights:HousingNumber of Positions = 2Without Tab ContactsWithout 2.5mm Pin Diameter ContactsWithout Fiber Optic ContactsSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONNECTOR HOUSING, RECEPTACLE, 2 WAY Connhousingfem.2way4mm180° Plug; Connector: wire-wire; MQS; female; PIN:2; w/o terminals TE Connectivity Micro Quadlock System 系列 2路 电缆安装 黑色 母 连接器 , 压接端接 MQS BU-GEH EDS,SW2P |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 2700 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 24.15mm |
| 间距 | 4 mm | 宽度 | 15.3mm |
| 高度 | 15.3 mm | 长度 | 17.4mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | PBT |
| 总长度 | 17.4 mm | 包装数量 | 2700 |
| 主要材料 | Connector | 连接器 - 电缆 | plug |
| 连接器颜色 | black | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| SPG | 2700 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 1-967644 | 产品特性 | Sealed |
| 制造商全称 | MicroQuadlockSystem | 适配器系列 | Micro Quadlock System |
| 单元数量 | 2700 | 适用产品/相关产品 | Sealed Micro Quadlok System |
文档与媒体
相关型号
962885-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Automotive Connectors MQS SOCKET CONT Micro-Power & Power Quadlok System CONN RCPT CONT 20-23AWG TIN Contact, Socket, Quadlock, 23-20AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NoneTin Contact FinishWire Range = 0.25-0.60² [23-20] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONTACT, TIN RECEPT., CRIMP CONTACT, CRIMP, SOCKET, 32-24AWG, REEL Contact,Socket,Quadlock,23-20AWG Contact; female; 0.25÷0.35mm2; MQS; tinned; crimped; for cable TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀锡触点
965906-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Micro-Power & Power Quadlok System CONN SOCKET 18AWG TIN Crimp Contact female 20-18.5 awg Automotive Connectors MQS SKT 20-18 BR/SN Reel of 9000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NonePre Tin Contact FinishWire Range = 0.50-0.75² [20-18.5] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONTACT, SOCKET, 0.5 - 0.75 MM2, CRIMP CONTACT, CRIMP, SOCKET, 18AWG, REEL CrimpContactfemale20-18.5awg TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀锡触点
965906-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Micro-Power & Power Quadlok System Automotive Connectors MQS BUCHS-KONT EDS Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NoneGold Contact FinishWire Range = 0.50-0.75² [20-18.5] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, RECEPTACLE TAB
962885-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Micro-Power & Power Quadlok System CONN RCPT CONT 23-20AWG GOLD Contact female 0.25-0.6mm² Quadlock Automotive Connectors RECPT. GOLD CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NoneGold Contact FinishWire Range = 0.25-0.60² [23-20] mm [AWG]SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, Contactfemale0.25-0.6mm²Quadlock TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀金触点
