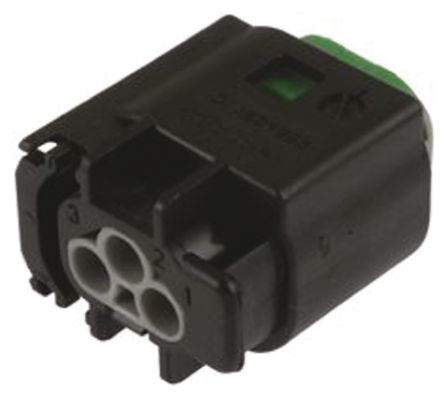

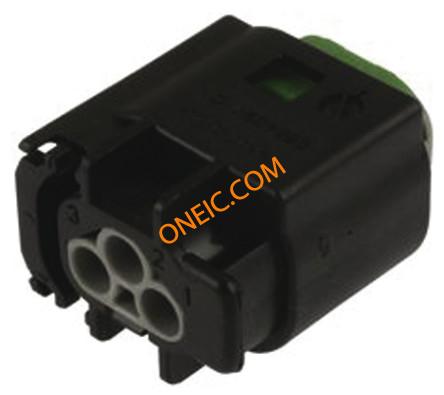

2-967642-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS Crimp ST Micro-Power & Power Quadlok System MQS BU-GEH EDS 3P Housing, 3 way, Quadlock, Tab Automotive Connectors MQS BU-GEH EDS 3P Conn Housing RCP 3 POS Crimp ST Product Highlights:HousingNumber of Positions = 3Without Tab ContactsWithout 2.5mm Pin Diameter ContactsWithout Fiber Optic ContactsSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, PLUG AND SOCKET CONNECTOR HOUSING HOUSING, RECEPTACLE, MICRO QUADLOK, 3WAY Housing,3way,Quadlock,Tab TE Connectivity Micro Quadlock System 系列 3路 电缆安装 灰色 母 连接器 , 压接端接 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1900 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85411000 |
电气参数
| 最大额定电流 | 7.5/Contact A | 最小供电电压 | 50VAC |
机械参数
| 颜色 | Gray | 深度 | 24.2mm |
| 间距 | :3.1mm | 宽度 | 15.3mm |
| 高度 | 15.3 mm | 长度 | 20mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线线规 | 11-11.5 | 触头类型 | Female Socket |
| 基体材料 | :PBT-GF 15 | 外壳颜色 | Gray |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | PBT | 总长度 | 20 mm |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 2-967642 |
| 产品特性 | Sealed | 适用产品/相关产品 | Sealed Micro Quadlok System |
环境参数
| 工作温度 | -40C to 120C | ||
