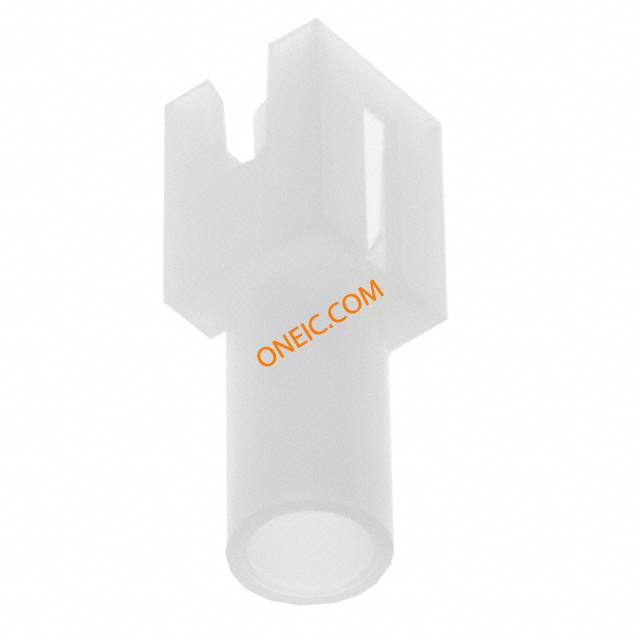

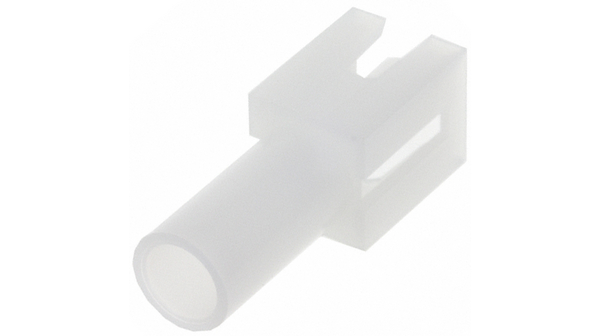

770421-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 1POS 94V-2 UNI-MATE Pin & Socket Connectors CAP HOUSE 1 POS Conn Housing RCP 1 POS ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 1In-Line Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Housing;CommercialPinandSocket;9;Nylon;Natural;Matrix;0.062in. Receptacle housing Pitch6.35 mm Poles 1 Single row / Free hanging/cable mount MATE-N-LOK Universal, 770421-1, TE Connectivity 01P UMNL CAP HSG NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 测试电压 | 5000 | 额定电压 | 600 V |
| 极数 | 1 | 供电电压 | 600 |
| 最大额定电流 | 19 A | 绝缘电阻 | 1000 MOhm |
机械参数
| 颜色 | Natural | 间距 | 6.35 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Detent Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle | 连接器样式 | Single row |
| 高度（英寸） | 1.08 | 总宽度 | .3 |
| 壳体材料 | Polyamide (PA) | 总长度 | .3 |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 1 | 兼容外壳尺寸（如TM-700等） | 标准通用 MATE-N-LOK 连接器 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Universal Mate-N-Lok |
| 产品子类型 | Receptacle Housings | 连接方式 | Wire-Board |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+85 °C |
文档与媒体
相关型号
