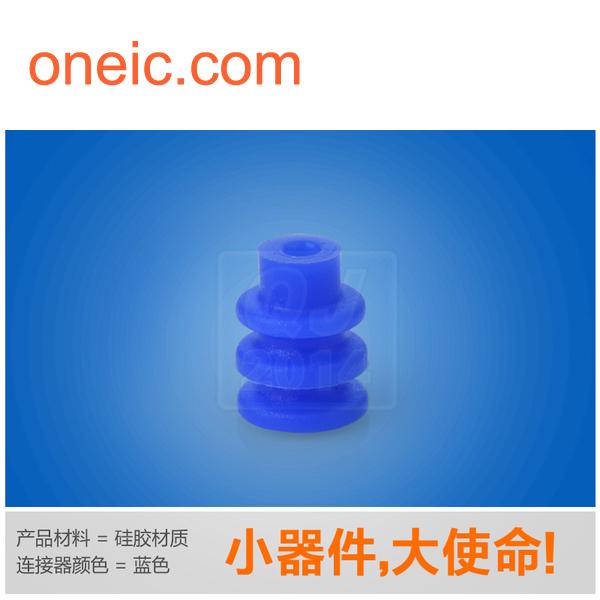

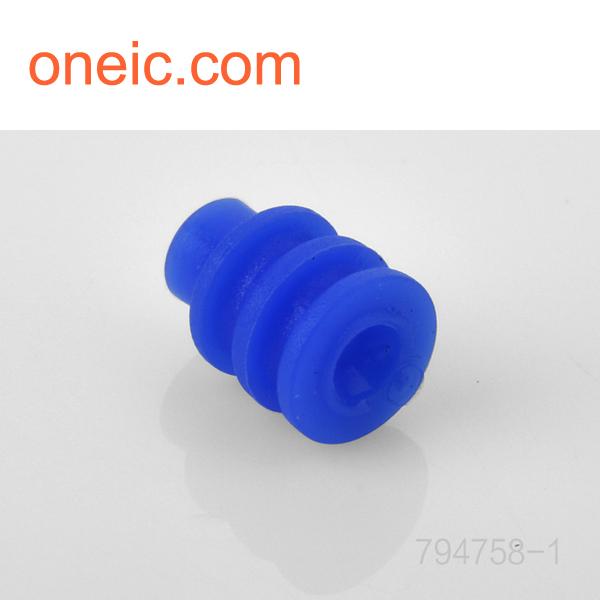

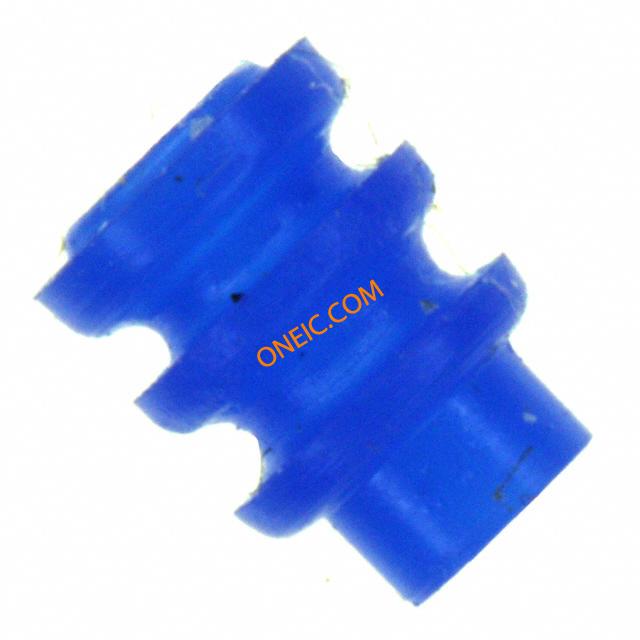

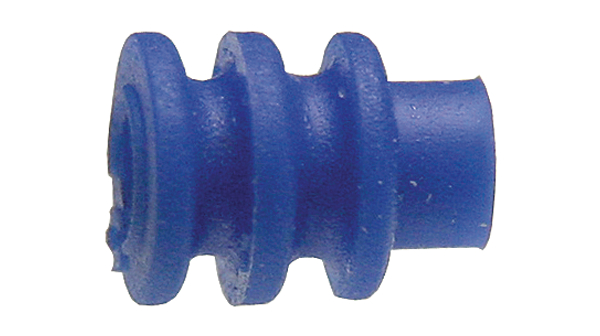

794758-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Single Wire Seal Blue .163" Centerline, 600 V, 9.5 A max. SEAL SNGL CAVITY WIRE MINI UMNL Single wire seal Pin & Socket Connectors CAVITY WIRE SEAL Connector Accessories Single Wire Seal Blue Product Highlights:Single Wire SealMini-Universal MATE-N-LOK SealedColor = BlueWire Range = 0.12-0.90² [26-18] mm [AWG]Wire Insulation Diameter = 1.10 - 2.10 mmSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SEAL, SINGLE WIRE, MATE-N-LOK, 26-22 AWG CONNECTOR SEAL Connector;SiliconRubber;Blue;26to18AWG;0.043to0.083in. Seal for wire; 4.14mm; Application: for sealed connectors Wire seal blue, 794758-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK Sealed Connector System系列 1路 IP56, IP57 蓝色 硅橡胶 电线密封, 适用于MATE-N-LOK连接器 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK Sealed | ||
机械参数
| 颜色 | Blue | 深度 | 4 mm |
| 重量 | 0.006 | 直径 | 4 mm |
| 材料（通用） | Silicon Rubber | 导线线规 | :0.12mm² |
| 重量（g） | 1.8 | 柱间距 | 4.14mm |
| 基体材料 | :Silicon Rubber | 外壳镀层 | :Silicone Rubber |
| 电缆直径 | :2.1mm | 连接器用途 | seal for wire |
| 壳体材料 | Silicon Rubber | 总长度 | 5 mm |
| 包装数量 | 20000 | 绝缘直径 | 1.10 â 2.10 [0.043 â 0.083] |
| 位数 | 1 | 线规或范围 - AWG | 26-18 |
| 线规或范围 - mm² | 0.12-0.90² [26-18] | 外径-未扩张 | :2.11mm |
产品信息
| SPG | 20000 | 名称 | 密封件 |
| 类型 | Seal | 单位 | PCS |
| 系列 | Mate-N-Lok | 数量 | 40000.0 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Single Wire Seal |
| 附件类型 | Seal | 适配器系列 | Mini Universal MATE-N-LOK Sealed |
| 单元数量 | 40000 | 射频系列/标准 | 794758 |
| 制造国家 | 加拿大 | 设备部件号 | 794758-1.pdf |
| 最小起订量 | 1 | 适用产品/相关产品 | Universal MATE-N-LOK Series |
文档与媒体
相关型号
171639-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG TIN CRIMP Mate-N-Lok socket contact,20-16awg Pin & Socket Connectors SOCKET 20-16 AWG MINI U-M-N-L Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketLoose PieceWire Range = 0.50-1.40² [20-16] mm [AWG], (2) 0.50-0.60² [(2) 20] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Contacts;MATE-N-LOKConnectors;20-16aAWG;Sockets Contact; female; 0.5÷1.4mm2; Mini Universal MATE-N-LOK; tinned Crimp socket 9.5 A Female 16...20 AWG, 171639-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI U-M-N-L SOCKET L.P
170365-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG TIN M-UMNL Mate-N-Lok socket contact,26-22awg Power to the Board SKT 26-22 AWG BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 26-22AWG MINIUNIVERSALM-N-LSOCKETLP Contact; female; 0.12÷0.4mm2; Mini Universal MATE-N-LOK; tinned MATE-N-LOK 26-22 AWG Wire to Cable Crimp Socket Contact Crimp socket 9.5 A Female 22...26 AWG, 170365-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UNIVERSAL M-N-L SOCKET LP

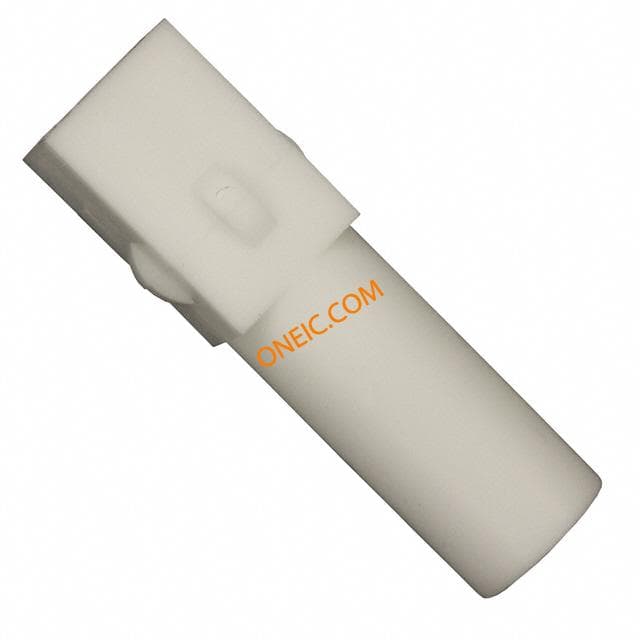

350865-1
