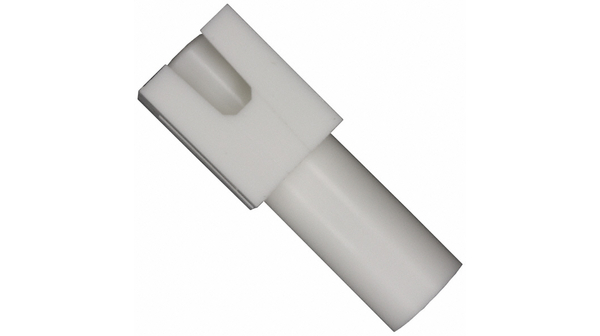

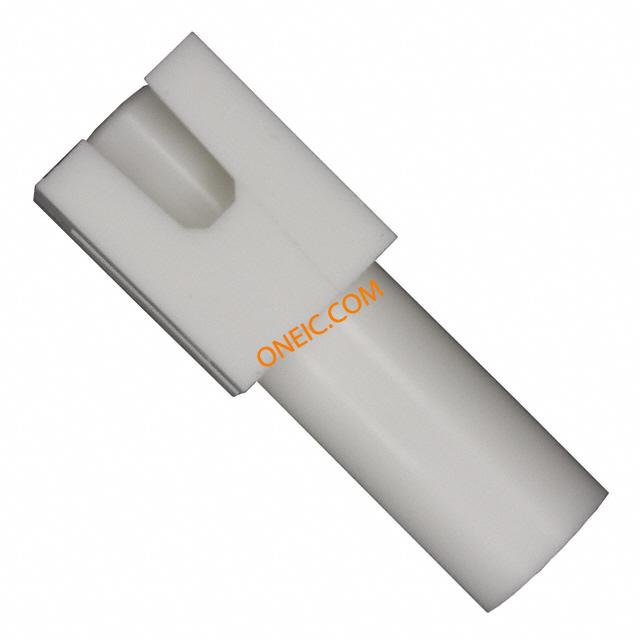

350866-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 1POS 94V-0 UNI-MATE Housing,cap,Mate-n-lok,1 Way,White Pin & Socket Connectors CAP HOUSE 1 POS Conn Housing RCP 1 POS Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 1In-Line Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOK;1;Receptacle(Cap);Nylon;White Receptacle housing Pitch6.35 mm Poles 1 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350866-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 路 直 母 压接连接器外壳 01P UMNL CAP HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 测试电压 | 5000 | 额定电压 | 600 V |
| 极数 | 1 | 供电电压 | 600 |
| 最大额定电流 | 19 A | 绝缘电阻 | 1000 MOhm |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | 9.65mm |
| 间距 | Not Required mm | 宽度 | 9.65mm |
| 高度 | 9.65 mm | 长度 | 27.43mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 方向 | 直 |
| 触头类型 | Male or Female | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Detent Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle | 连接器样式 | Single row |
| 壳体材料 | Nylon | 总长度 | 27.43 mm |
| 包装数量 | 1 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | white |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 1 | 兼容外壳尺寸（如TM-700等） | 单电路通用 MATE-N-LOK 插头 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Housings |
| 连接方式 | Wire-Board | 装配配置 | Without |
| 适用产品/相关产品 | 6.35 mm Centerline Soft Shell Pin & Socket Connector | ||
