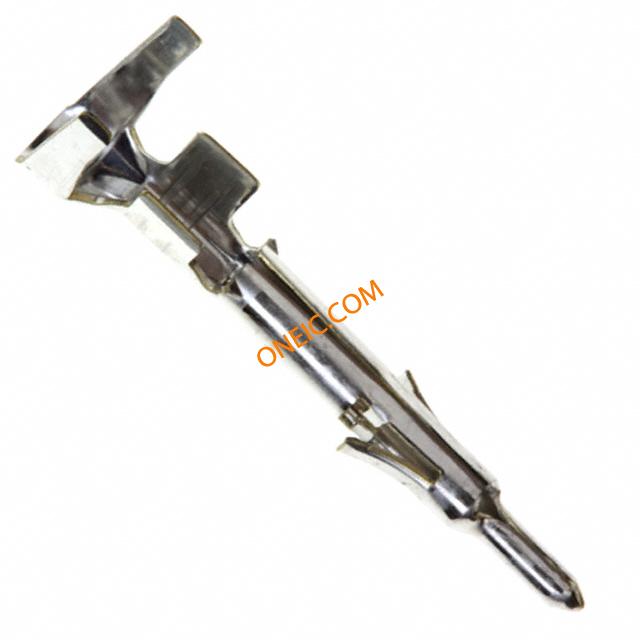

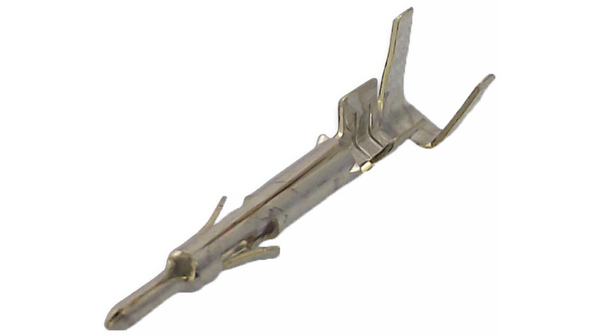

171638-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 16-20AWG TIN CRIMP Mate-N-Lok contact pin,20-16awg Pin & Socket Connectors PIN 20-16 AWG BULK Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.50-1.40² [20-16] mm [AWG], (2) 0.50-0.60² [(2) 20] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 20-16AWG, CRIMP ContactsforMini-UniversalMATE-N-LOKConnectors;Pin;20-16AWG Contact; male; 0.5÷1.4mm2; Mini Universal MATE-N-LOK; tinned Crimp pin 9.5 A Male 16...20 AWG, 171638-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI U-M-N-L PIN CONT. L.P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Mini-UniversalMATE-N-LOK | ||
机械参数
| 深度 | 4.3 mm | 间距 | Not Required mm |
| 高度 | 4.95 mm | 重量 | 0.0239 |
| 包装方式 | Loose Piece | 导线线规 | 16-20 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 4.14mm |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 18 mm |
| 包装数量 | 1000 | 主要材料 | Contact |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 线规或范围 - AWG | 20-16 |
| 线规或范围 - mm² | 0.5...1.4mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1000 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | Mate-N-Lok |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-UniversalMATE-N-LOK |
| 产品子类型 | Contacts | 适配器系列 | Mini Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
