点击放大查看

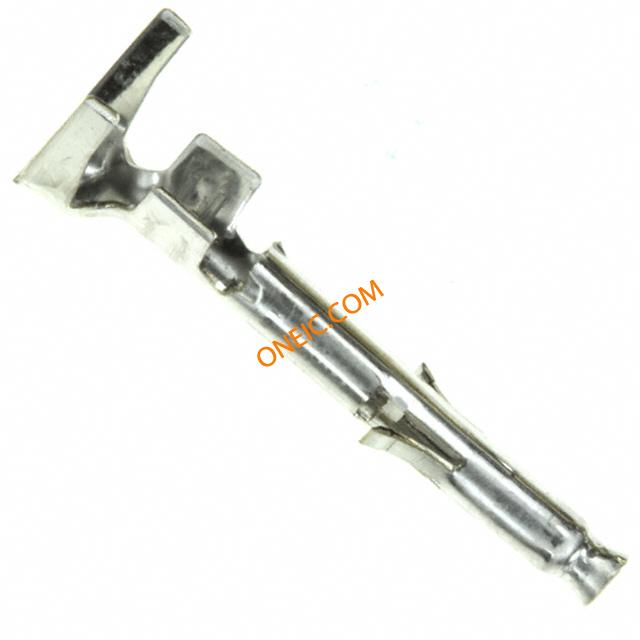

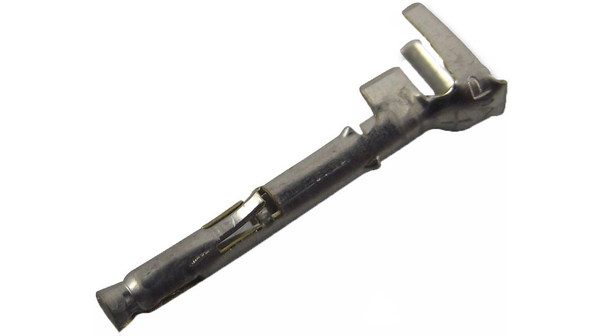

171639-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 16-20AWG TIN CRIMP Mate-N-Lok socket contact,20-16awg Pin & Socket Connectors SOCKET 20-16 AWG MINI U-M-N-L Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketLoose PieceWire Range = 0.50-1.40² [20-16] mm [AWG], (2) 0.50-0.60² [(2) 20] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Contacts;MATE-N-LOKConnectors;20-16aAWG;Sockets Contact; female; 0.5÷1.4mm2; Mini Universal MATE-N-LOK; tinned Crimp socket 9.5 A Female 16...20 AWG, 171639-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI U-M-N-L SOCKET L.P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认证机构标志 | 是 | ||
电气参数
| 输入端 | .079 – .126, .094 | 额定电压 | 600 V |
| 供电电压 | 600 | 接触电阻 | 10mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Mini-UniversalMATE-N-LOK | ||
机械参数
| 深度 | 4.3 mm | 间距 | Not Required mm |
| 高度 | 4.95 mm | 重量 | 0.21 g |
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 柱间距 | 4.14mm | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 电缆直径 | 1.3mm² | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 箔压接区域 | .8 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 18 mm |
| 包装数量 | 100 | 主要材料 | Contact |
| 端接排数 | 压接 | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 线规 - 端部 | 16 |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 横截面形状 | 0.5...1.3 mm² | 第一连接器极性 | Female |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 接触件表面处理 - 配合 | 预镀锡 |
| 法兰上方插针尺寸 | 1 mm [ .039 in ] | 接触镀层厚度 | .8 µm [ 31.49 µin ] |
| 线规或范围 - AWG | 20-16 | 线规或范围 - mm² | 0.5...1.4mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| 制造商 | 2 – 3.2, 2.4 | SPG | 100 |
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 制造商全称 | Mini-UniversalMATE-N-LOK | 产品子类型 | Contacts |
| 适配器系列 | Mini Universal MATE-N-LOK | 单元数量 | 1 |
| 应用细节 | Power | 适用产品/相关产品 | 微型 MATE-N-LOK 连接器 |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
