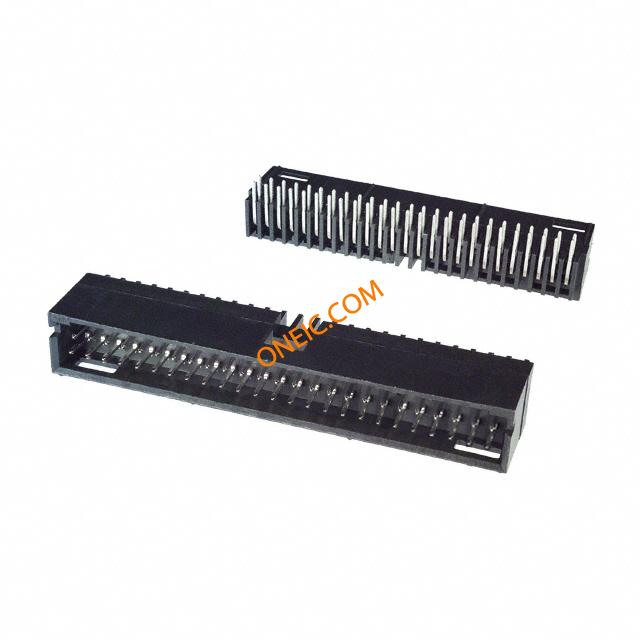

7-87579-2

点击放大查看

7-87579-2

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 50POS PCB TIN Headers & Wire Housings 50P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD LF
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格64
产品类别Headers & Wire Housings标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant标准CSA LE7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

额定电压750 V开关功能Detent Windows
连接器阻抗制动器窗口最大额定电流3 A
绝缘电阻5000 MOhms保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型带有包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）1.68 mm [ .066 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
触头类型Male Pin第一连接器否
第二连接器With安装类型Through Hole, Right Angle
连接器类型Header, Shrouded接触镀层Tin Over Nickel
紧固类型Detent Lock安装样式标准
排数2外壳材料（壳体）4- 面
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量64
面板安装类型通孔端接样式Through Hole
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数50端接表面处理带罩
位数50柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.43 mm接触镀层厚度100µin (2.54µm)
静电放电屏蔽不带端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers选择性装载No
加载位置数All

环境参数

密封等级不带温度No
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
