首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）7-102398-3

点击放大查看

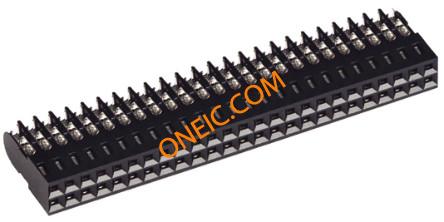

7-102398-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,50Pos. AMPMODU MT Receptacle Assembly; 50 Pos.; Dual Row; IDC; 26-22AWG; .100 CL Headers & Wire Housings HSG DUAL 50P 26-22 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONN RECEPTACLE 50POS, 2.54MM AMPMODUMTReceptacleAssembly,50Pos.,DualRow,IDC,26-22AWG,.100CL 50 AMPMODU MT ASSY DR.100CL SN
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A33402
产品类别	Headers & Wire Housings	标准包装数量	Trays
工厂包装数量	50

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
认证机构	CSA,UL	材料阻燃等级	UL94V-0

电气参数

最大额定电流

3 A

机械参数

颜色	Black	间距	2.54 mm
长度	2.5in	重量	0.005
包装方式	Tray	导线类型	Discrete or Ribbon Cable
导线线规	22-26 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Wire	排数	2
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	2.5"	主要材料	InterconnectSystem
电缆端接方式	IDC	插针孔直径	0.1"
端接样式	IDC	第一触头极性	Socket (Female)
触点数	50	位数	50
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMPMODU/MT	产品特性	Closed End
制造商全称	AMPMODU/MTSeries	产品子类型	Receptacles / Sockets - Housings
矩阵（列×行）	0.1x0.1

环境参数

工作温度

+105°C

文档与媒体

PDF 文档

580372.pdf

在线文档

7-102398-3?RQPN=7-102398-3
