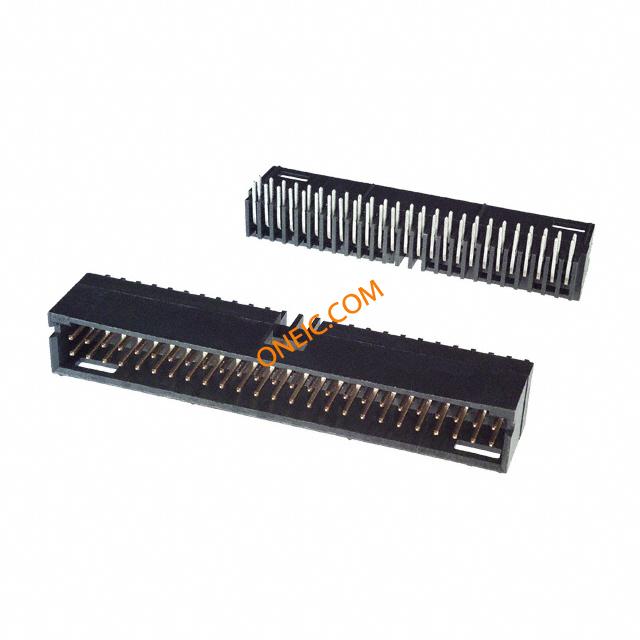

2-103166-3

点击放大查看

2-103166-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 30AU Headers & Wire Housings SHROUDED RA DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量32

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
击穿电压750最大额定电流3
绝缘电阻5,000保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型带有锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器No
第二连接器With触点形状Square
外壳颜色Black安装类型Right Angle
连接器类型Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2封装形式4-Sided
外壳材料（壳体）4- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度1.68 [0.066]安装特性Without
包装数量32面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一连接器类型带罩第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数50
端接表面处理带有位数50
柱体长度（配合）8.08 mm安装孔直径带有
中心触点材料2.54 x 2.54 [.100 x .100]接触长度 - 配合8.08 [0.318]
表面贴装焊盘尺寸No端子柱长度3.43 [0.135]
接触镀层厚度30µin (0.76µm)安装面板厚度With
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
制造商全称AMP产品子类型Header
选择性装载No加载位置数All

环境参数

密封等级不带温度No
防护等级带罩工作温度-55 – +105
封装热阻1.397 mm [ .055 in ]结工作温度否
