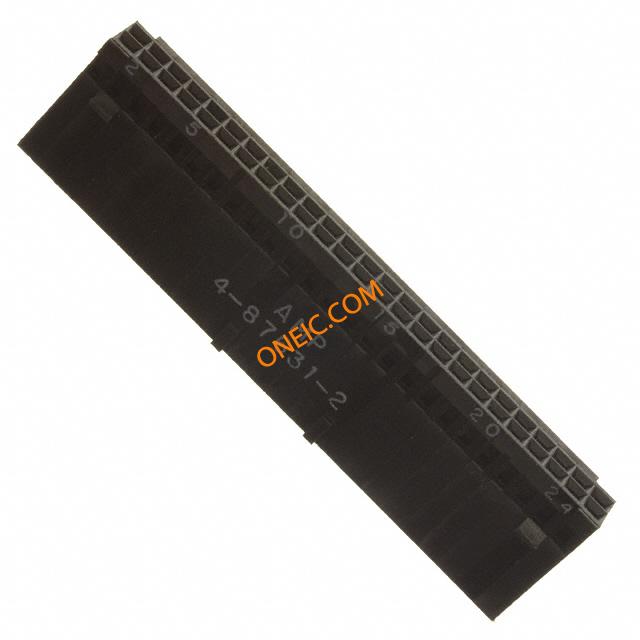

4-87631-2

点击放大查看

4-87631-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings HSG 2X25C F/H POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;50;250VAC;3A;750V 50 MODIV HSG DR MRKD .100 POL
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant标准ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号CSA LR7189, UL E28476材料阻燃等级是

电气参数

额定电压250 V开关功能Detent Latching
供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
击穿电压750V最大额定电流3 A
绝缘电阻5000Megohms保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度3.14 mm [ .24 in ]长度63.5 mm [ 2.5 in ]
锁定类型锁闩包装方式Bulk
壳体颜色黑色导线线规20-30 AWG
排间距0.100" (2.54mm)端接方式CrimpSnap-In
触头类型Female Socket极化Yes
安装类型Straight行程角度Straight
连接器类型Receptacle紧固类型Locking Ramp
排数2插入件材料铍铜
触头材料Phosphor Bronze壳体材料Nylon
总长度2.5"包装数量100
主要材料InterconnectSystem连接器 - 电缆Yes
插针孔直径0.1"端接样式Crimp
第一触头极性Socket (Female)触点数50
接触件端接Crimp位数50
兼容外壳尺寸（如TM-700等）公端安装孔直径带有
静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
制造商全称AMPMODU/MODIVSeries产品子类型Receptacles / Sockets - Housings
抽头/步进数2其他规格是
应用细节Board to Board矩阵（列×行）0.100x0.100in.

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C
