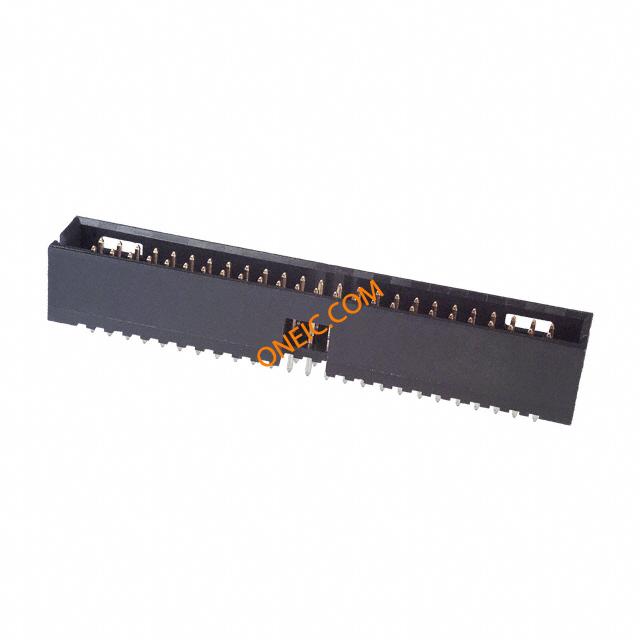

7-103169-3

点击放大查看

7-103169-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Trays

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

连接器阻抗制动器窗口最大额定电流3
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
触头类型Male Pin第一连接器No
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2封装形式4-Sided
外壳材料（壳体）4- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.81 [0.150]安装特性Without
包装数量32面板安装类型Without
尺寸/外形0.64 [.025]端接样式插针
外径.64 mm [ .025 in ]触点数50
端接表面处理带罩位数50
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触长度 - 配合8.08 [0.318]表面贴装焊盘尺寸No
端子柱长度3.18 [0.125]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
钥匙类型否制造商全称AMP
产品子类型Header选择性装载No
加载位置数All

环境参数

密封等级不带温度No
工作温度-55 – +105封装热阻1.397 mm [ .055 in ]
