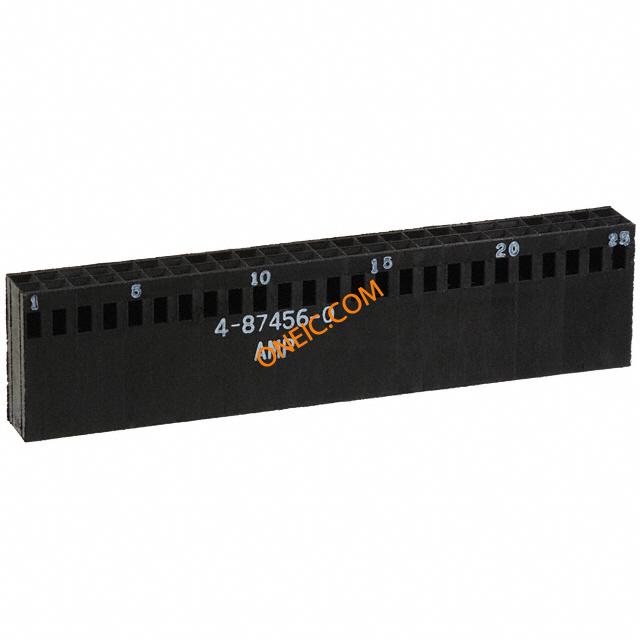

4-87456-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings HSG 2X25C F/H Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;50;250VAC;3A;750V 50 MODIV HSG DR MRKD .100CL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	击穿电压	750V
最大额定电流	3A	绝缘电阻	5000 MOhms
最小供电电压	250VAC	连接器类型 - 电压输入	Receptacle
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
长度	3.28in	锁定类型	不带
包装方式	Bulk	壳体颜色	黑色
排间距	0.100" (2.54mm)	端接方式	Crimp
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	极化	No
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
排数	2	插入件材料	铍铜
壳体材料	Nylon	总长度	66.04 mm
包装数量	100	主要材料	InterconnectSystem
连接器 - 电缆	Yes	插针孔直径	0.1"
端接样式	插座	触点数	50
接触件端接	Crimp	位数	50
安装孔直径	不带	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU/MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
其他规格	是	输出配置	Free Hanging (In-Line)
应用细节	Wire-to-Board	矩阵（列×行）	0.100x0.100in.

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

+105°C

文档与媒体

PDF 文档

1650916.pdf
