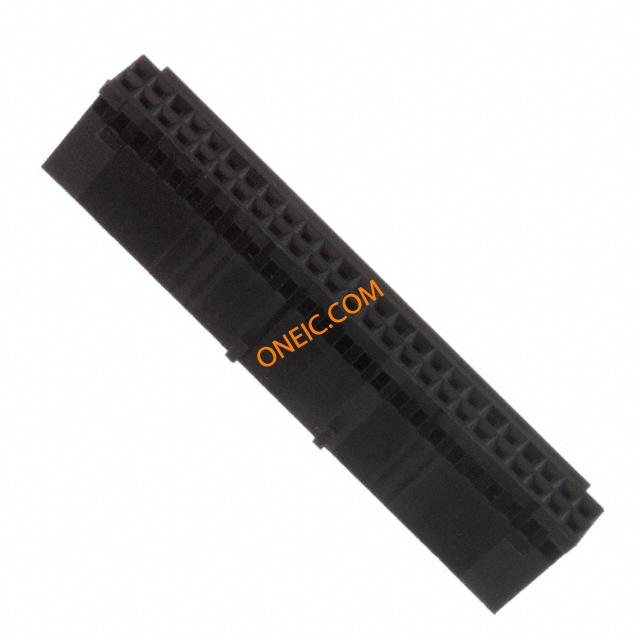

4-87631-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 HSG COMP DR .1POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A25893
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

00000000

电气参数

额定电压	250 V	开关功能	Detent Latching
最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0	包装方式	Bulk
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	接触镀层	:(Not Available)
紧固类型	Locking Ramp	排数	2
触头材料	Phosphor Bronze	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	50	接触件端接	Crimp
位数	50

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	应用细节	Board to Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

4-87631-1?RQPN=4-87631-1
