点击放大查看

2-86177-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 50POS DL CRIMP Headers & Wire Housings 50 MODIV HSG COMP DR .100CL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100CL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名

AMPMODU

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	最大额定电流	3 A
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	0.100" (2.54mm)
高度	6.1 mm [ .24 in ]	长度	63.5 mm [ 2.5 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	排数	2
插入件材料	磷青铜	壳体材料	Nylon
包装数量	1	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	50
接触件端接	Crimp	位数	50
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	不带
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	其他规格	否

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105

文档与媒体

在线文档

2-86177-1?RQPN=2-86177-1

相关型号

7-103168-3

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Headers & Wire Housings SHROUDED VER DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM 50 MODII HDR DRST SHRD .100CL

¥24.0720

详情

2-103169-3

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Headers & Wire Housings ACTION PIN VERT 50P dual .150 end Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL

¥70.6520

详情

7-103169-3

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL

¥43.1800

详情

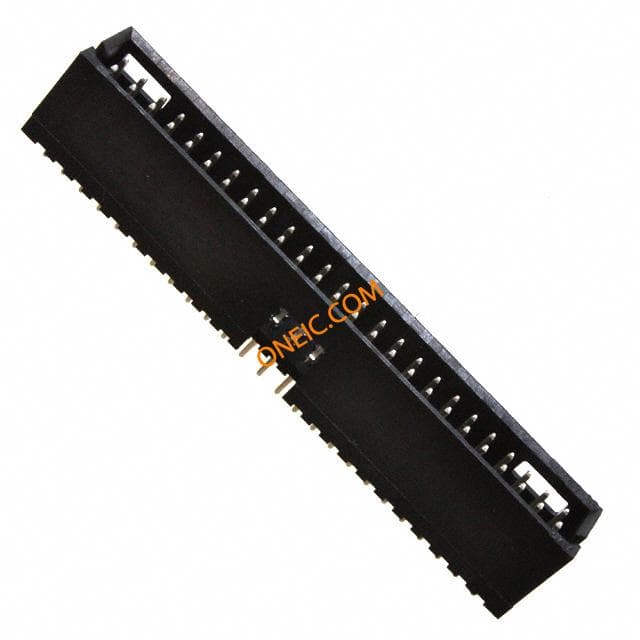

7-87589-1

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 50POS PCB TIN Headers & Wire Housings 50P HDR DRST SHRD Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL

¥34.0095

详情

7-102617-3

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 50P HDR DRRA SHRD .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 15AU Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD LF

¥15.9800

详情

2-102570-2

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 50POS DL R/A SHRD AU

详情

2-103167-2

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 50POS R/A DUAL 30AU Headers & Wire Housings 50 MODII HDR DRRA SH 64 .100 inch AMPMODU Headers Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL

¥60.0855

详情

2-103166-3

te connectivity / amp

Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 30AU Headers & Wire Housings SHROUDED RA DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL

¥83.2279

详情

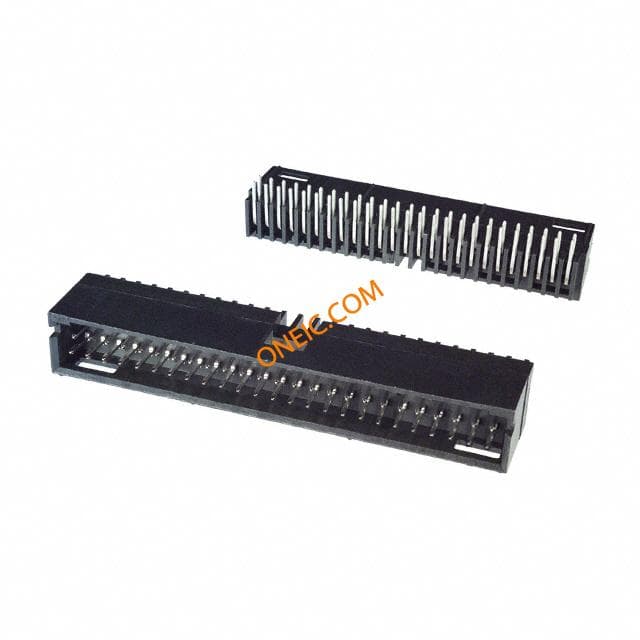

7-87579-2
