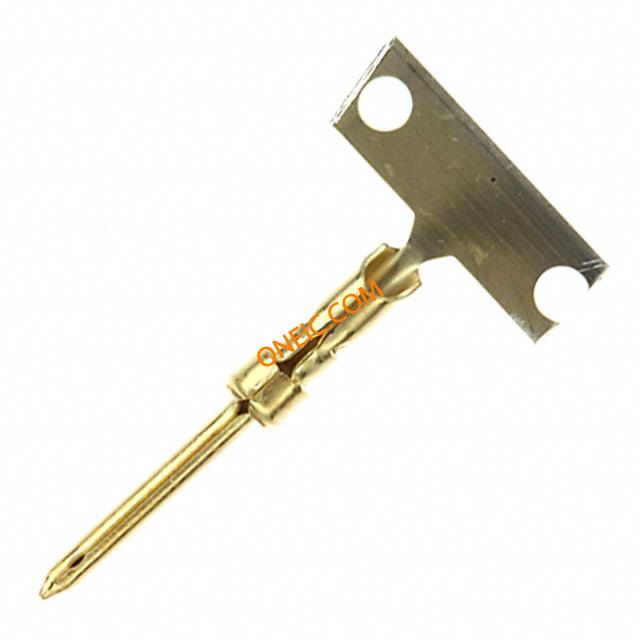

66570-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Solder Cup ST Cable Mount Strip Standard Circular Contacts SOLDER CUP PIN CNTCT Standard Cable Connectors CONN PIN 18AWG SLD CUP GOLD CONTACT PIN 18AWG SOLDR CUP GOLD Contact PIN Solder Cup ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 20 DF PIN PLTD |
| 分类 |
商业参数
| 其他名称 | A1028CT | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 输入端 | .085 | 连接器阻抗 | 焊接 |
机械参数
| 深度 | 2.15 mm | 间距 | Not Required mm |
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Reel | 导线线规 | 18 AWG |
| 端接方式 | Solder Cup | 触点尺寸 | 20 |
| 触头类型 | Signal | 引脚直径 | 1.02 [0.040] |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 端子尺寸 | 20 | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel|Gold Over Palladium Nickel Over Nickel | 安装样式 | Cable |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 14.98 mm |
| 包装数量 | Strip | 绝缘高度 | No |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 触点数 | Not Required | 接触件端接 | Crimp Snap-In |
| 镀层厚度（通用） | Flash | 兼容外壳尺寸（如TM-700等） | AMPLIMITE HDP-20, CPC 连接器 |
| 接触镀层厚度 | 30 | 线规或范围 - mm² | 0.8 - 0.9 [18] |
产品信息
| 类型 | Stamped | 等级 | Standard |
| 连接器性别 | PIN | 系列 | HDP-20 |
| 产品子类型 | Contact | 端口数 | 1 Port |
| 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 | ||
环境参数
| 工作温度 | -55C to 105C | ||
