61117-5
| 制造商 | TE Connectivity Ltd. |

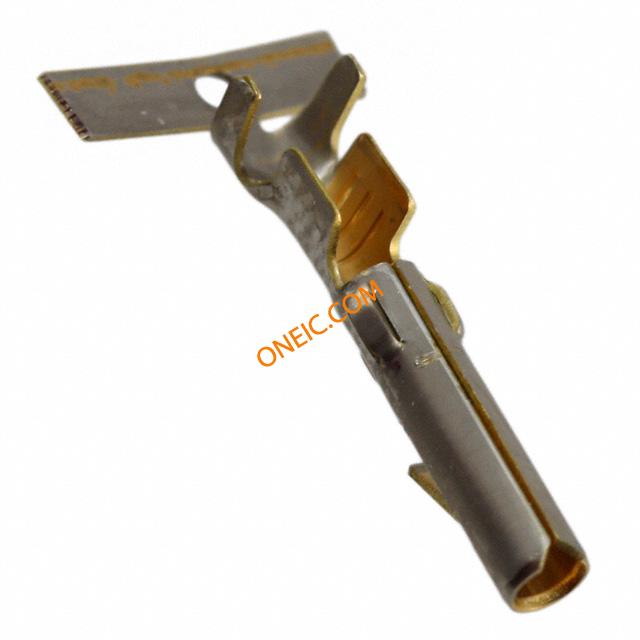

| 描述 | Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG MNL Mate-n-lok socket contact,0.50-2.00mm² Pin & Socket Connectors CMNL SOK 20-14 AUBR 61117-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,20-14AWG,2.13mm null TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK 20-14 AUBR |
| 分类 |
商业参数
| 其他名称 | A100901CT | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | ||
机械参数
| 间距 | 5.08 mm | 镀层 | 金 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 引脚样式 | 圆形, 圆形 | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | 开式压线筒 | 插针或插孔 | Socket |
| 释放力 | 带有 | 电缆直径 | 2mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 外壳材料（壳体） | 镍 | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 5000 |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 绝缘直径 | 3.3 mm [ .13 in ] | 兼容外壳尺寸（如TM-700等） | 商用 MATE-N-LOK |
| 接触件表面处理 - 配合 | 金 | 法兰上方插针尺寸 | 2.13 mm [ .084 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 20-14 |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 连接器性别 | SKT | 系列 | Mate-N-Lok |
| 产品子类型 | Receptacle Housings | 其他规格 | 否 |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
