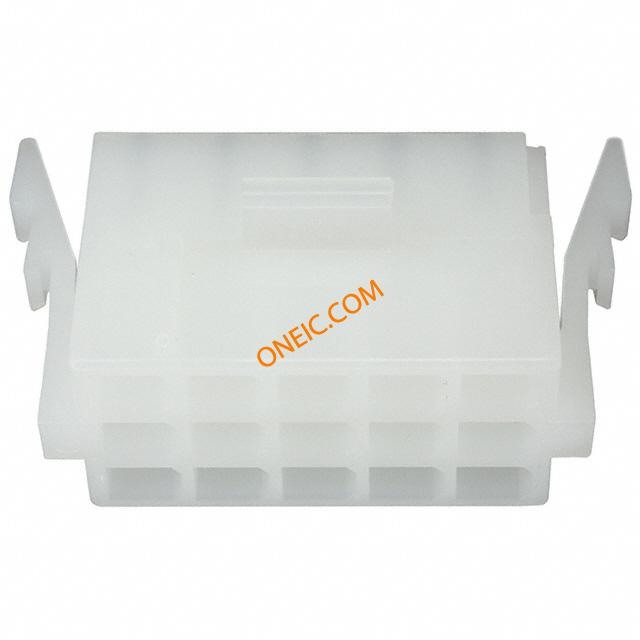

1-480323-0

制造商	TE Connectivity Ltd.
描述	Conn Housing PL 15 POS 5.13mm Crimp ST Cable Mount Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 15 POS MATE-N-LOK Housing,plug,cm Mate-n-lok,15Way,Natural Power to the Board SOCKET PANEL 15CRKT Conn Housing PL 15 POS 5.13mm Crimp ST Cable Mount Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 155.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 15 WAY Connector,Softshell;CommercialMATE-N-LOK;15;Nylon;0.084;Plug;13A 15P CMNL PLUG HSG P/M NATL
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	认证机构	:CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-2

电气参数

额定电压	250 V	供电电压	250
接触电阻	:4mohm	介电强度	:1500V
最大额定电流	13 A	绝缘电阻	:500Mohm
最小供电电压	250VAC	连接器类型 - 电压输入	Commercial MATE-N-LOK

机械参数

颜色	Natural	间距	5.13 mm
重量	0.008	材料（通用）	:Nylon
锁定类型	Positive Lock	包装方式	Bulk
排间距	0.202" (5.13mm)	触头类型	Female Socket
柱间距	5.13 x 6.10 [.202 x .240]	外壳颜色	Natural
安装类型	Straight	连接器类型	Plug
紧固类型	Latch Lock	安装样式	Press Fit
排数	5	封装形式	Plug
壳体材料	Nylon	包装数量	One Piece Housing
端接样式	Quick Connect	第一触头极性	Pin (Male)
连接器颜色	:Clear	触点数	15
接触件端接	Crimp	位数	15
典型触点布局	Matrix	接触镀层厚度	2.13 [0.084]
线规或范围 - AWG	30-14

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	PL	系列	MATE-N-LOK
产品子类型	Housing	电路数	15
适用产品/相关产品	Wire-to-Board Connector

环境参数

插拔次数

:50

工作温度

:105°C

文档与媒体

在线文档

1-480323-0?RQPN=1-480323-0
