点击放大查看

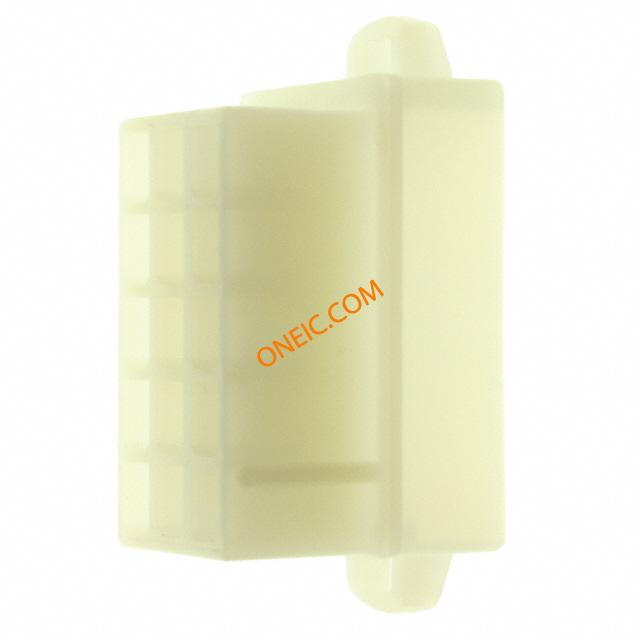

1-480324-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 6.1mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 15POS MATE-N-LOK Housing,cap,cm Mate-n-lok,15 Way,Natural Power to the Board PIN PANEL 15CRKT Conn Housing RCP 15 POS 6.1mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 155.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;15;Nylon;0.084;13A;250VAC TE Connectivity Commercial MATE-N-LOK 系列 3 行 6.1mm 节距 15 路 直 母 PCB 壳体 15P CMNL CAP HSG P/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.62mm |
| 间距 | 6.1 mm | 宽度 | 21.59mm |
| 高度 | 21.59 mm | 长度 | 45.59mm |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.202" (5.13mm) | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Latch Holder | 安装样式 | Press Fit |
| 排数 | 3 | 封装形式 | Receptacle (Cap) |
| 壳体材料 | Nylon | 总长度 | 45.59 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 触点数 | 15 | 接触件端接 | Crimp |
| 位数 | 15 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 中心触点材料 | 5.13 x 6.10 [.202 x .240] | 典型触点布局 | Matrix |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 电路数 | 15 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
350639-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Mate-n-lok pin contact,0.80-.090mm² Power to the Board CONTACT 350639-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PINCONTACT,0.80-.090MMª MATE-N-LOK 18 AWG Discrete Wire to Cable Crimp Pin Contact TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 MNL PIN PTPBR
350079-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG TIN CRIMP Power to the Board PIN CONTACT 30-22 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 30-22 AWG Pin Contact MNL PIN 30-22 PTPBR
61116-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG GOLD CRIMP Pin & Socket Connectors MNL PIN S/F 24-18 Contact PIN Crimp ST Cable Mount Strip Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 24-18 AUNIBR
1-480323-0
te connectivity / amp
Conn Housing PL 15 POS 5.13mm Crimp ST Cable Mount Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 15 POS MATE-N-LOK Housing,plug,cm Mate-n-lok,15Way,Natural Power to the Board SOCKET PANEL 15CRKT Conn Housing PL 15 POS 5.13mm Crimp ST Cable Mount Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 155.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 15 WAY Connector,Softshell;CommercialMATE-N-LOK;15;Nylon;0.084;Plug;13A 15P CMNL PLUG HSG P/M NATL

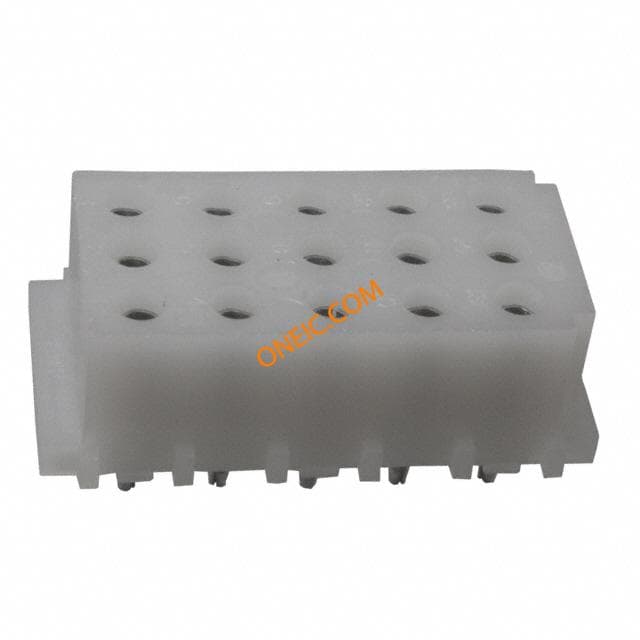

350644-1
