点击放大查看

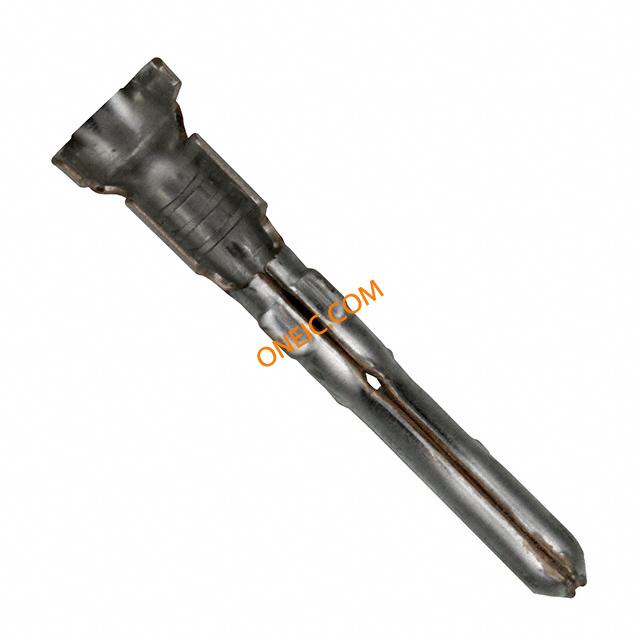

350558-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Power to the Board MNL PIN 20-14 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 其他名称 | A25769CT | 产品类别 | Power to the Board |
| 标准包装数量 | 3,000 | 工厂包装数量 | 3000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Reel | 导线线规 | 16-18 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 触头材料 | Phosphor Bronze |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | ||
产品信息
| 连接器性别 | PIN | 产品子类型 | Contacts |
