点击放大查看

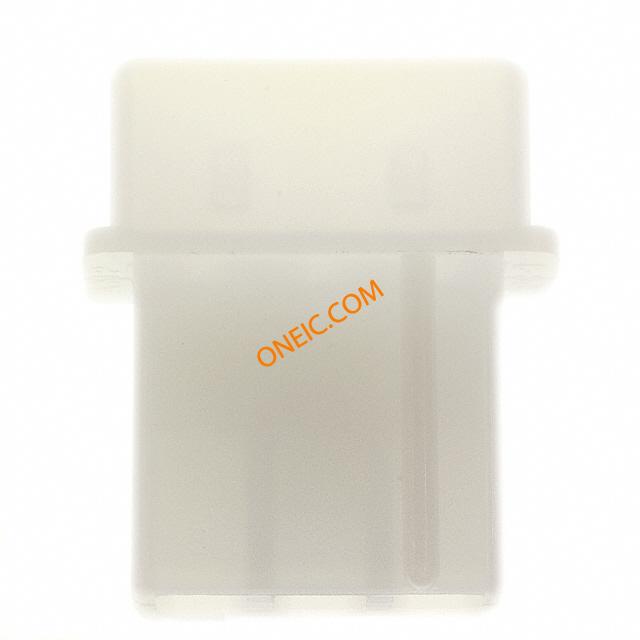

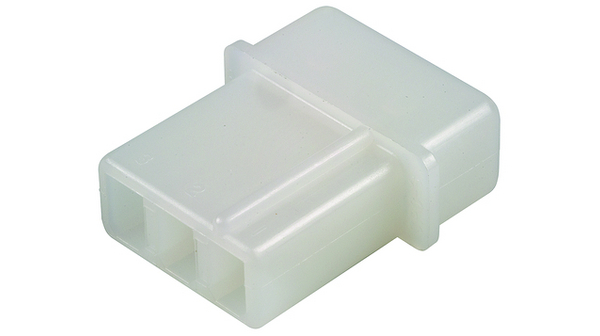

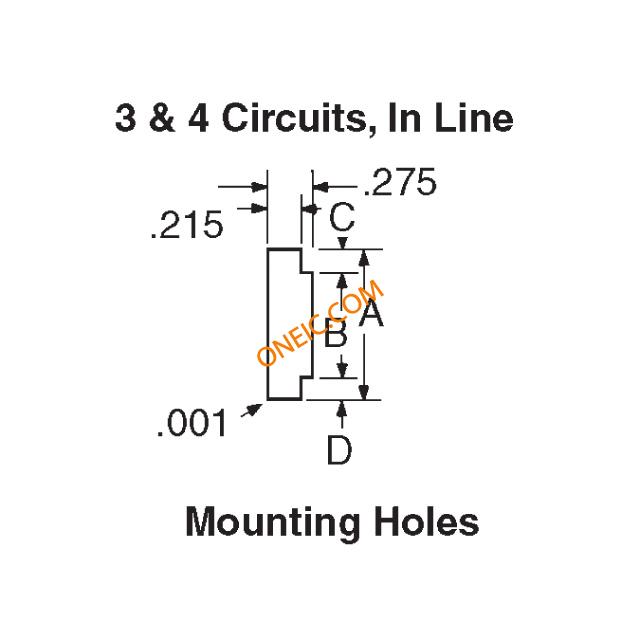

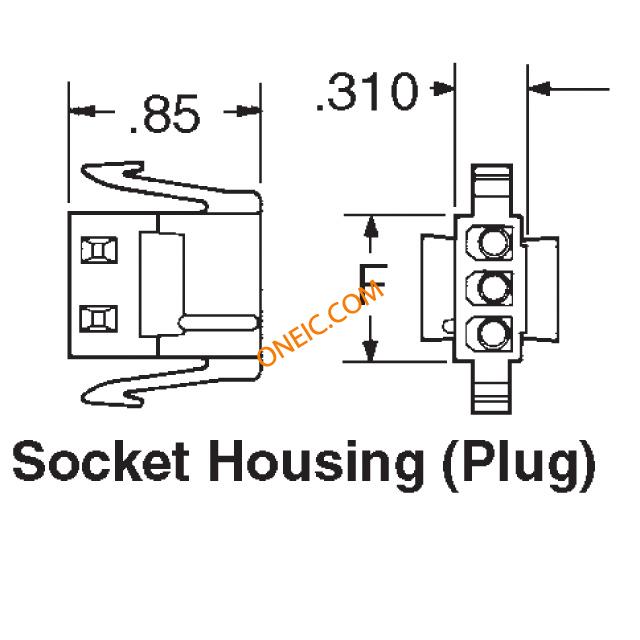

1-480305-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 3 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac Power to the Board PIN PANEL 3 CIRCUITS Conn Housing RCP 3 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONNECTOR HOUSING, NYLON Connector;CommercialMATE-N-LOK;Receptacle(Cap);3;Nylon;13A(Max.);AMP Plug; wire-board; male; w/o terminals; 5.08mm; PIN:3; UL94V-2; 250V Pin housing Pitch5.08 mm Poles 1 x 3 MATE-N-LOK Commercial, 1-480305-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 3 路 直 母 电缆安装 PCB 壳体 03P CMNL CAP HSG F/H NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V ac | 供电电压 | 250 |
| 最大额定电流 | 13A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 23.62 mm |
| 间距 | 5.08 mm | 高度 | 8.26 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 锁定类型 | Detent Lock | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 触头类型 | Male Pin |
| 柱间距 | 5.08mm | 基体材料 | polyamide |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Friction Lock |
| 安装样式 | Free Hanging | 排数 | 1 |

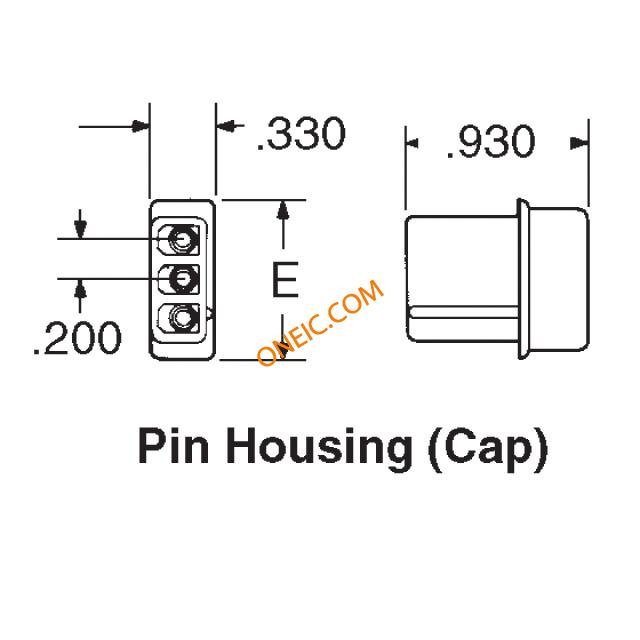

| 封装形式 | Receptacle (Cap) | 壳体材料 | Nylon |
| 总长度 | 20.57 mm | 包装数量 | One Piece Housing |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 中心触点材料 | 5.08 [.200] | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
| 第一连接器安装特征 | 1x3 | ||
产品信息
| SPG | 1 | 备注 | Housing accepts double wire applications where individual insulation diameters |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | :Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housing | 适配器系列 | Commercial MATE-N-LOK |
| 单元数量 | 1 | 电路数 | 3 |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
环境参数
| 工作温度 | :105°C | ||
