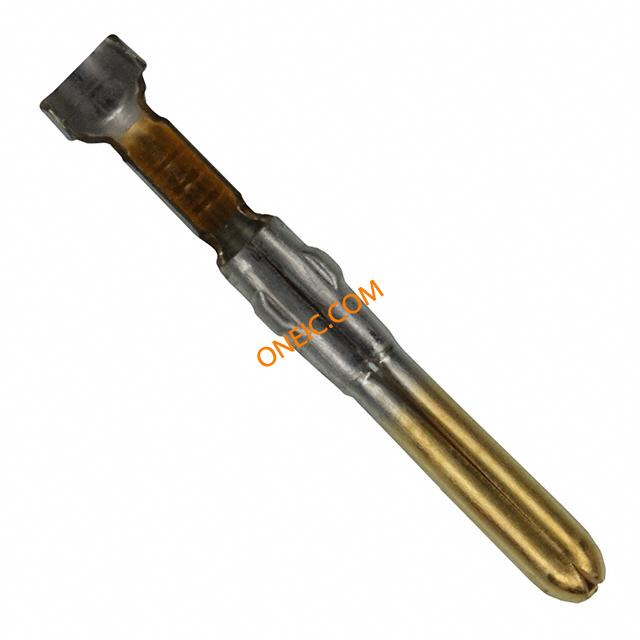

350079-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MNL PIN 30-22 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP 350079-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 30-22 AUBR |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 8,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 供电电压 | 250 | 最大额定电流 | 15 |
机械参数
| 间距 | 3.96 mm | 镀层 | 金 |
| 包装方式 | Reel | 电缆类型 | 分离式导线 |
| 导线线规 | 22-30 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 壳体镀层 | Nickel |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 8000 | 端接样式 | 插针 |
| 适用端子尺寸 | No | 触点数 | 6 |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 – 1.91 mm [ .04 – .075 in ] |
| 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 | 接触件表面处理 - 配合 | 金 |
| 法兰上方插针尺寸 | 2.13 mm [ .084 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 连接器性别 | PIN | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | ||
