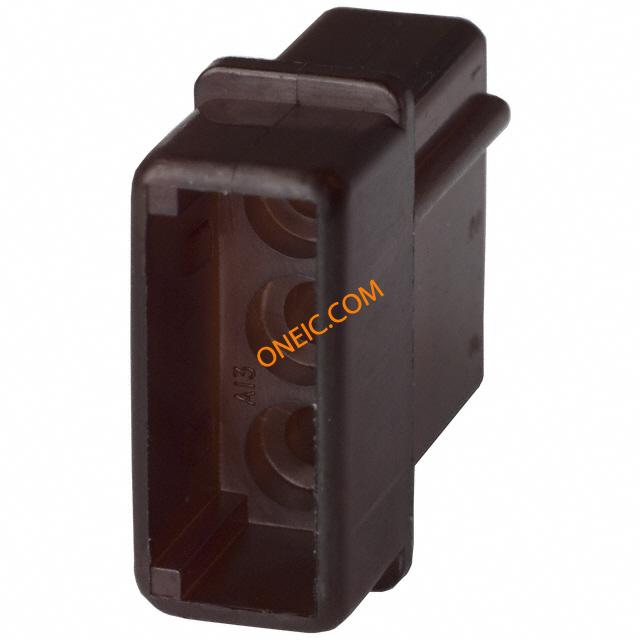

1-480305-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN CAP 3 POS BLK MATE-N-LOK Power to the Board 03P CMNL CAP HSG F/H Conn Housing RCP 3 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL CAP HSG F/H BLK |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | Always was RoHS compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 14-30 AWG | 触头类型 | Male Pin |
| 柱间距 | 5.08 [.200] | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Friction Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle (Cap) |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 面板安装类型 | 不带 | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 电路数 | 3 | ||
