点击放大查看

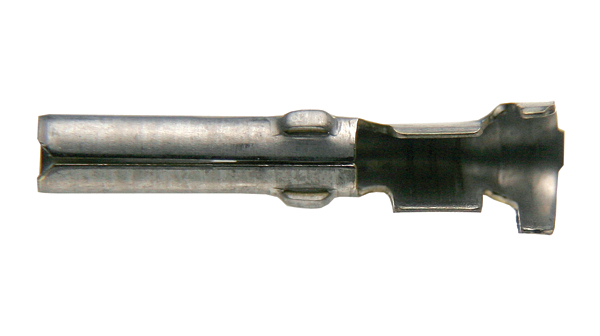

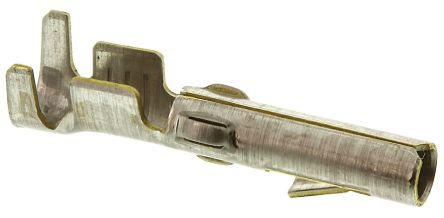

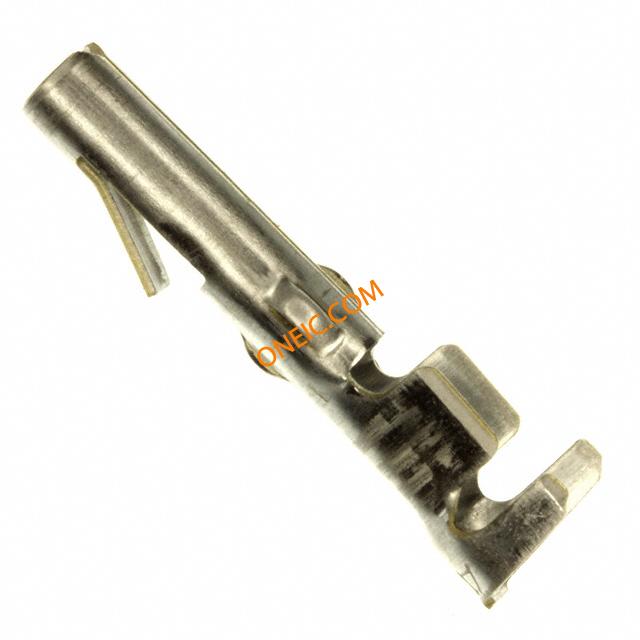

60619-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG TIN CRIMP Mate-N-Lok Com contact socket 20-14awg Power to the Board SOCKET 20-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 0.5-2.0MM Contact,Socket,MATE-N-LOK,20-14AWG,Brass Crimp socket 13 A Female 20...14 AWG, 60619-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK PTPBR L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 4.44 mm | 间距 | Not Required mm |
| 高度 | 4.82 mm | 重量 | 0.001 |
| 材料（通用） | :Brass | 包装方式 | Bulk |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 触点尺寸 | :14 | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 17.7 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | :3.3mm |
| 线规或范围 - AWG | 20-14 | 线规或范围 - mm² | :2mm² |
| 外径-未扩张 | :3.3mm | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
