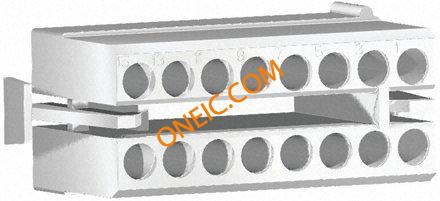

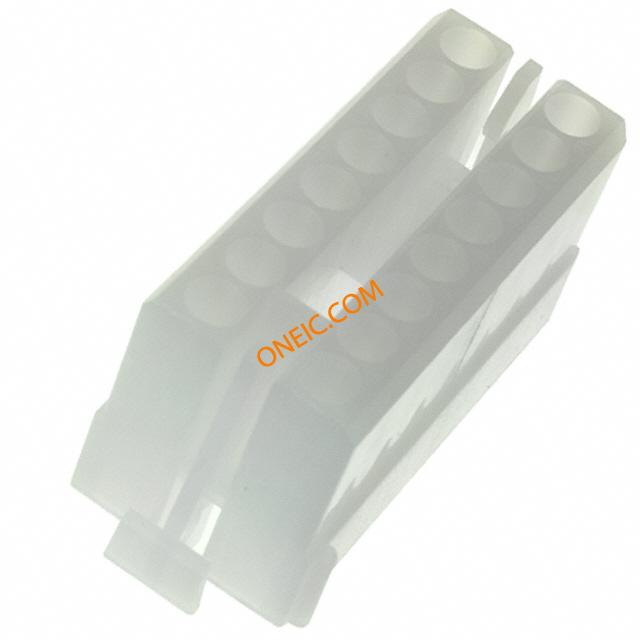

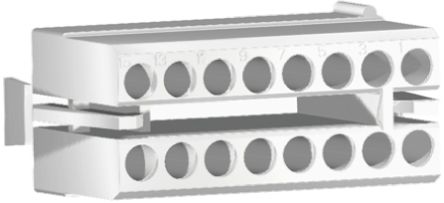

1-480438-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 16 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 16 POS MATE-N-LOK Housing FH 16 way 2 row Rec Mate-n-Lok Power to the Board 16 POS SKT HOUSING Conn Housing PL 16 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 164.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;16;0.084;0.195x0.360in.;Nylon;Plug TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 16 路 直 公 PCB 壳体 16P CMNL PLUG HSG M/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant |
| UL等级 | 已认证, 获得认可 | 零件状态 | E28476 |
| 无铅定义 | Not relevant for lead free process | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 输出数量 | 16 | 中心频率 | 带有 |
| 最大额定电流 | 13 A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 21.59mm |
| 间距 | 4.95 mm | 宽度 | 18.42mm |
| 高度 | 18.42 mm | 长度 | 40.26 |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 方向 | 直 | 排间距 | 0.360" (9.14mm) |
| 外壳样式 | Plug | 触头类型 | Female Socket |
| 柱间距 | 4.95 x 9.14 [.195 x .360] | 芯径 | 0.084 |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Plug |
| 高度（英寸） | 21.59 | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 16 |
| 矩阵（列×行） | 0.195x0.360in. | 适用产品/相关产品 | 5.08 mm Centerline Soft Shell Pin & Socket Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 105C |
相关型号
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
1-480439-0
te connectivity / amp
Conn Housing RCP 16 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECPT/CAP 16 POS MATE-N-LOK Mate-n-lok,housing,receptacle,16 way pin Connector; Soft Shell; 250 VAC; 13 A; 16; 0.084; 0.195 x 0.360 in.; Nylon Power to the Board PIN MOTOR MNT 16CKT Conn Housing RCP 16 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 164.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;16;0.084;0.195x0.360in.;Nylon TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 16 路 直 母 PCB 壳体 16P CMNL CAP HSG M/M NATL
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
350427-1
te connectivity / amp
Conn Power HDR 16 POS 4.95mm Solder ST Thru-Hole 16 Terminal 1 Port Power to the Board CONN PCM 16 POS TIN .200" Centerline, 250 V, 13 A max. CONN HEADER 16POS VERT DUAL TIN Conn Power HDR 16 POS 4.95mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 164.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 16P CMNL HDR ASSY PC NATL
1586522-2
te connectivity / amp
Conn Power PIN 16 POS 4.95mm Solder ST Thru-Hole 16 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 16POS MATE-N-LOK AU Pin & Socket Connectors 16P CMNL HDR ASSY PC NATL LF 16P CMNL HDR ASSY PC NATL LF 16P CMNL HDR ASSY PC NATL LF Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
61314-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT SOCKET 24-18AWG M-N-L Pin & Socket Connectors CMNL SOK S/F 24-18 . .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61314-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-lok socket contact,0.20-0.80mm² Pin & Socket Connectors CMNL SOK S/F 24-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.20-0.80mm² TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK S/F 24-18 .0125AUPHBZ
61117-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board MNL SOK SF 20-14 .01 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 20-14 AUPHBZ
60617-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board SCKT 24-18 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Connectors,contactsforMATE-N-LOK,socket,24-18AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK AUBR L/P
61117-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG TIN MNL Contact,crimp,socket,20-14awg Power to the Board SPLIT PIN 24-18 REEL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG CONTACT,SOCKET,MATE-N-LOK,2.13MM,20-14AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPBR

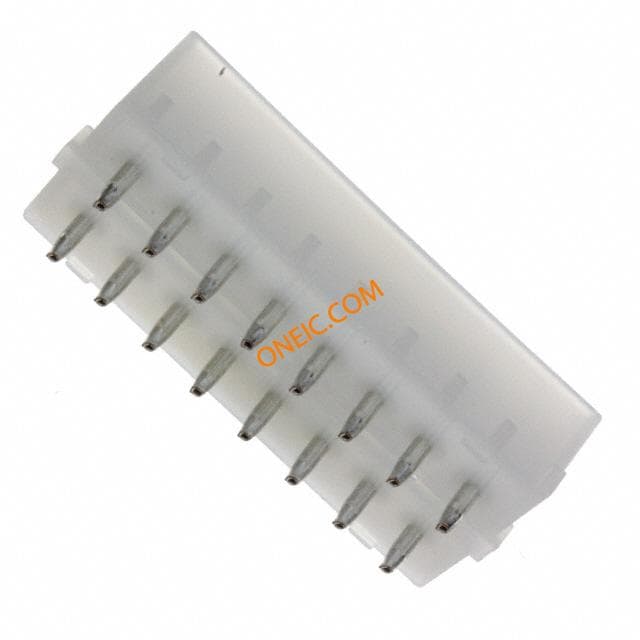

350214-1
