61117-2
| 制造商 | TE Connectivity Ltd. |

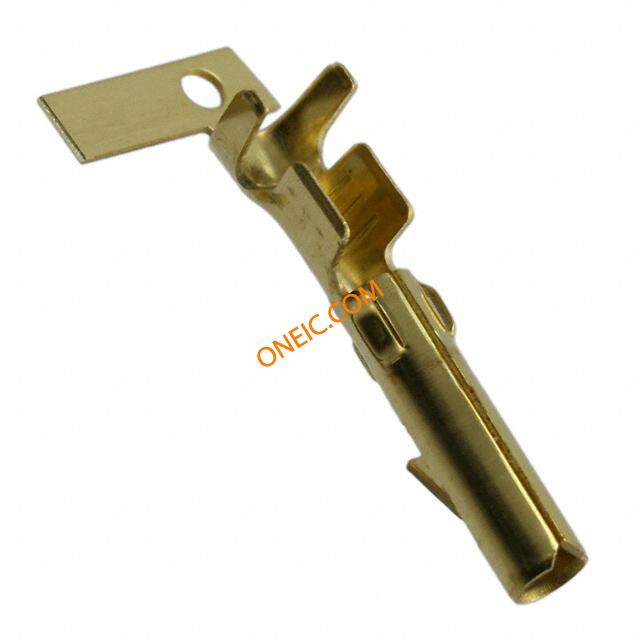

| 描述 | Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR |
| 分类 |
商业参数
| 其他名称 | A100715CT | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 供电电压 | 250 | 最大额定电流 | 15 |
机械参数
| 长度 | 18.42 mm | 包装方式 | Reel |
| 电缆类型 | 分离式导线 | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 触点形状 | Round | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 5000 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 3.3 mm [ .13 in ] | 兼容外壳尺寸（如TM-700等） | 商用 MATE-N-LOK |
| 接触件表面处理 - 配合 | Unplated | 法兰上方插针尺寸 | 2.13 mm [ .084 in ] |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 连接器性别 | SKT | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-480287-0
te connectivity / amp
Conn Housing PL 12 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 12POS MATE-N-LOK Housing, FH, 12 way, Mate-n-Lok, Rec Power to the Board 12 POS SKT HOUSING Conn Housing PL 12 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 124.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON CONNECTOR,SOFTSHELL,MATE-N-LOK,12POSITION,PLUG,NYLON,NATURAL TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 12 路 直 公 PCB 壳体 12P CMNL PLUG HSG M/M NATL
1-480318-0
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 2 POS MATE-N-LOK Male Compact Power Connector Plug 250V ac Power to the Board SOCKET FREE 2 CRKTS Conn Housing PL 2 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Plug;2;Nylon;13A(Max.);250VAC;0.2in. Socket housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480318-0, TE Connectivity TE Connectivity 插座外壳 插头 公 250 V 交流 02P CMNL PLUG HSG F/H NATL
1-480721-0
te connectivity / amp
Conn Housing PL 3 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 3 POS MATE-N-LOK Mate-n-lok,housing,plug,3way skt contact Housing, FH, Lock 3 way, Mate-n-Lok, Rec Power to the Board 3 POS SKT HOUSING Conn Housing PL 3 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector;CommercialMATE-N-LOK;Receptacle(Cap);6;Nylon;13A(Max.);AMP TE Connectivity Commercial MATE-N-LOK 系列 5.08mm 节距 3 路 直 公 PCB 壳体 03P CMNL PLUG HSG W/LOK NATL
1-480349-2
te connectivity / amp
Conn Housing PL 1 POS Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. 01P CMNL PLUG HSG F/H RED Power to the Board 01P PLUG HSG F/H RED Conn Housing PL 1 POS Crimp ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 1In-Line Contact LayoutHousing Type = PlugSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
1-480275-0
te connectivity / amp
Conn Housing PL 12 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 12POS UNI-MATE-N-LK II Power to the Board SOCKET PANEL 12CRKT Conn Housing PL 12 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 125.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;12;Nylon;0.084;Plug;13A 12P CMNL PLUG HSG P/M NATL
465644-1
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL EXTRACTION TOOL MATE-N-LOK EXTRACTIONTOOL EXTRACTION TOOL, 4WAY Extraction tool 1, 465644-1, TE Connectivity TE Connectivity MATE-N-LOK 系列 压接拔取工具 EXTRACTION TOOL
1-480273-0
te connectivity / amp
Conn Housing PL 6 POS 5.13mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 6 POS MATE-N-LOK Male Compact Power Connector Plug,13A 250V ac/dc Power to the Board SOCKET PANEL 6 CRKTS Conn Housing PL 6 POS 5.13mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 65.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;6;Nylon;0.084;Plug;13A Socket housing Pitch5.13 mm Poles 3 x 2 MATE-N-LOK Commercial, 1-480273-0, TE Connectivity TE Connectivity 插座外壳 插头 公, 13A 250 V 交流/直流, -55 → +105 °C 06P CMNL PLUG HSG P/M NATL
1-480274-0
te connectivity / amp
Conn Housing PL 9 POS 5.13mm ST Individual Power to the Board SOCKET PANEL 9 CRKTS .200" Centerline, 250 V, 13 A max. CONN PLUG 9 POS MATE-N-LOK Conn Housing PL 9 POS 5.13mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 95.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;9;Nylon;0.084;Plug;13A Socket housing Pitch5.13 mm Poles 3 x 3 MATE-N-LOK Commercial, 1-480274-0, TE Connectivity 09P CMNL PLUG HSG P/M NATL
1-480283-0
te connectivity / amp
Conn Housing PL 8 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 8 POS MATE-N-LOK Housing,plug,cm Mate-n-lok,8 Way,Natural Power to the Board SOCKET FREE 8CRKT Conn Housing PL 8 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 84.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 8WAY Connector;CommercialMATE-N-LOK;Plug;8;Nylon;13A(Max.);250VAC;Natural TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 8 路 直 公 PCB 壳体 08P CMNL PLUG HSG M/M NATL
1-480400-0
te connectivity / amp
Conn Housing RCP 1 POS ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 1POS MATE-N-LOK Power to the Board PLUG HSG 1P Conn Housing RCP 1 POS ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 1In-Line Contact LayoutHousing Type = PlugSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HOUSING, PLUG, MATE-N-LOK, 1WAY 01P CMNL PLUG HSG F/H BLK
1-480683-0
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box .200" Centerline, 250 V, 13 A max. 02P CMNL PLUG HSG F/H NATL Power to the Board 02P PLUG HSG F/H NAT 1-480683-0 Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box Product Highlights:HousingContact Diameter = 2.18 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
1-480270-0
te connectivity / amp
Conn Housing PL 6 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 6 POS MATE-N-LOK Power to the Board SOCKET FREE 6 CRKTS Conn Housing PL 6 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 64.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY Connector;CommercialMATE-N-LOK;Plug;6;Nylon;13A(Max.);250VAC;Natural 06P CMNL PLUG HSG M/M NATL
455830-1
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTIONF UNI-MATE-II TOOL; CONTACT INSERTION INSERTION TOOL FOR MATE-N-LOCK CONTACTS TOOL,CONTACTINSERTION Insertion tool, 455830-1, TE Connectivity INSERTION TOOL
1-480318-9
te connectivity / amp
Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. 02P CMNL PLUG HSG F/H BLK Power to the Board 2 CKT PLUG HOUSING Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HOUSING, PLUG, MATE-N-LOK, 2WAY
1-480388-0
te connectivity / amp
Conn Housing PL 3 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 3POS MATE-N-LOK Power to the Board 3P F/H PLUG HSG Conn Housing PL 3 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING 03PCMNLPLUGHSGF/HBLK 03P CMNL PLUG HSG F/H BLK
1-171196-4
te connectivity / amp
MNL PANEL MOUNT PLUG 6P YELLOW Headers & Wire Housings PLUG 6P MATE-N-LOK YELLOW CONN PLUG 6POS MATE-N-LOK YELLOW
1-480438-0
te connectivity / amp
Conn Housing PL 16 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 16 POS MATE-N-LOK Housing FH 16 way 2 row Rec Mate-n-Lok Power to the Board 16 POS SKT HOUSING Conn Housing PL 16 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 164.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;16;0.084;0.195x0.360in.;Nylon;Plug TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 16 路 直 公 PCB 壳体 16P CMNL PLUG HSG M/M NATL
1-480303-0
te connectivity / amp
Conn Housing PL 3 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 3POS MATE-N-LOK Male Compact Power Connector Plug,13A 250V ac Power to the Board SOCKET FREE 3CRKT Conn Housing PL 3 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 3 WAY, NYLON Connector;CommercialMATE-N-LOK;Plug;3;Nylon;13A(Max.);250VAC;0.2in. Plug; wire-board; female; w/o terminals; 5.08mm; PIN:3; UL94V-2 Socket housing Pitch5.08 mm Poles 1 x 3 MATE-N-LOK Commercial, 1-480303-0, TE Connectivity TE Connectivity 插座外壳 插头 公, 13A 250 V 交流 03P CMNL PLUG HSG F/H NATL
1-480696-0
te connectivity / amp
Conn Housing RCP 6 POS 4.95mm Crimp ST Cable Mount Bag .200" Centerline, 250 V, 13 A max. CONN HOUS 6POS 94V-2 MATE-N-LOK Power to the Board 06P CMNL PLUG HSG M- 06P CMNL PLUG HSG M-M D/L NATL 06P CMNL PLUG HSG M-M D/L NATL Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
1-305183-2
te connectivity / amp

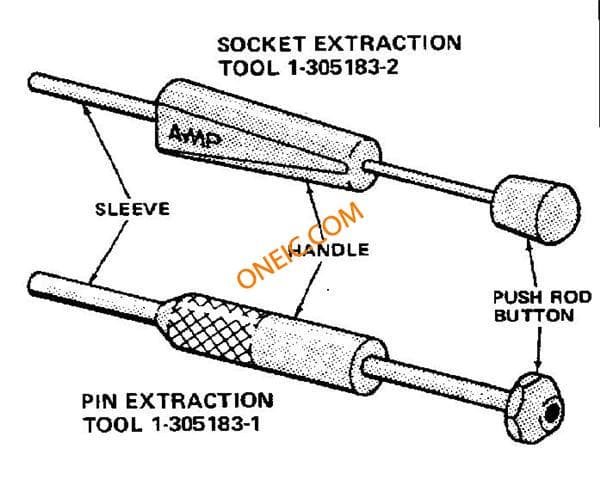

Assembly Tools, High Current Products, Circular Plastic Connectors Hand Tools EXTRACT TOOL MATE-N-LOK SKT TOOL EXTRACT MATE-N-LOK SOCKET EXTRACTION TOOL FOR MATE-N-LOK SOCKET EXTRACTIONTOOLFORMATE-N-LOKSOCKETCONTACTS TE Connectivity MATE-N-LOK 系列 压接拔取工具
