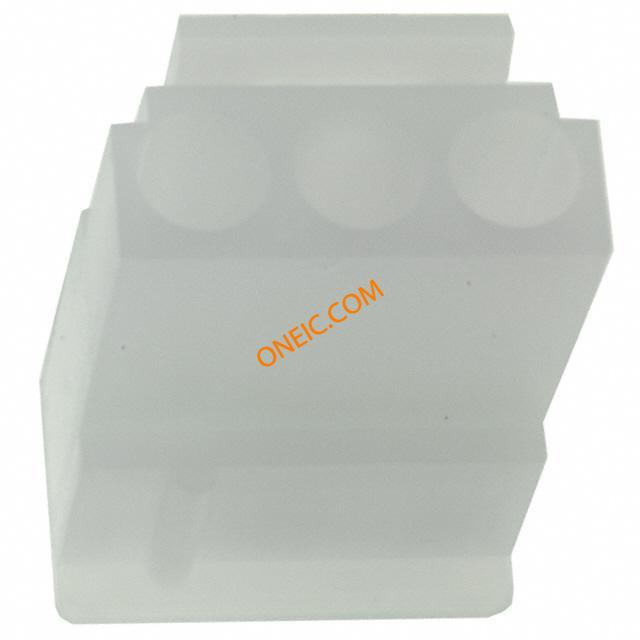

1-480721-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 3 POS MATE-N-LOK Mate-n-lok,housing,plug,3way skt contact Housing, FH, Lock 3 way, Mate-n-Lok, Rec Power to the Board 3 POS SKT HOUSING Conn Housing PL 3 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Connector;CommercialMATE-N-LOK;Receptacle(Cap);6;Nylon;13A(Max.);AMP TE Connectivity Commercial MATE-N-LOK 系列 5.08mm 节距 3 路 直 公 PCB 壳体 03P CMNL PLUG HSG W/LOK NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 21.59mm |
| 间距 | 5.08 mm | 宽度 | 13.34mm |
| 长度 | 15.88mm | 重量 | 0.002 |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 触头类型 | Female Socket |
| 基体材料 | :Nylon | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Plug | 线缆终端 | :Free Hanging |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点材料 | 5.08 [.200] |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 3 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
