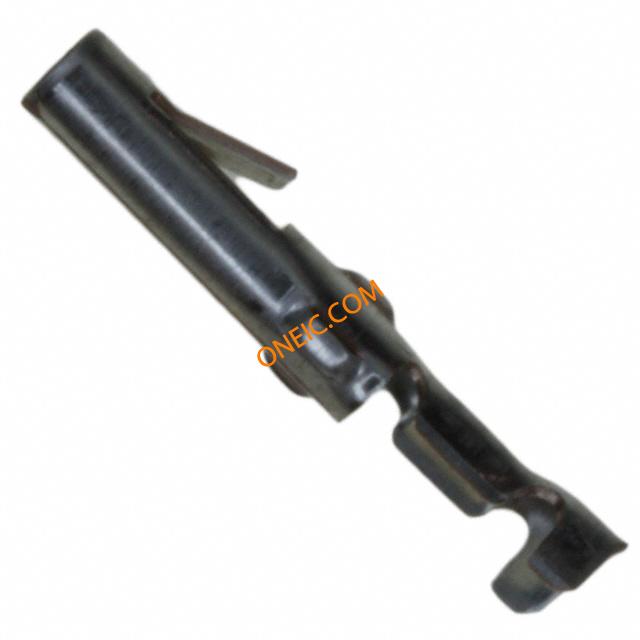

61173-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR 7189A |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 认可国家 | 是 | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V | 输出电流 | 3 |
| 供电电压 | 250 | 最大额定电流 | 13 A |
| 绝缘电阻 | 500 | ||
机械参数
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 22-30 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | Round | 安装类型 | 开式压线筒 |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 总长度 | 18.3 mm [ .72 in ] |
| 包装数量 | 1000 | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 – 1.91 mm [ .04 – .075 in ] |
| 兼容外壳尺寸（如TM-700等） | 商用 MATE-N-LOK 护套 | 接触件表面处理 - 配合 | 预镀锡 |
| 法兰上方插针尺寸 | 2.13 mm [ .084 in ] | 线规或范围 - AWG | 30-22 |
产品信息
| 连接器性别 | SKT | 产品子类型 | Contacts |
| 应用细节 | Power | ||
