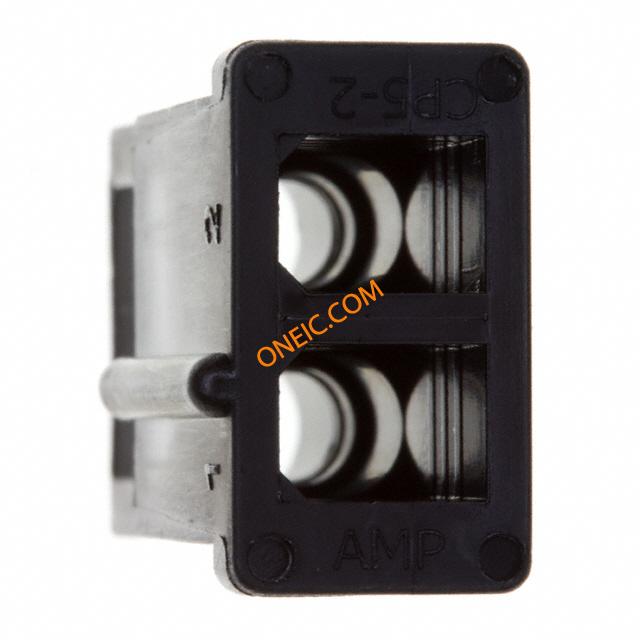

1-480393-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 2POS MATE-N-LOK Power to the Board 02P CMNL PLUG HSG F/ Conn Housing PL 2 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MAT-N-LOK 2 Position Single Row 0.2 inch Socket Contact Plug Housing 02P CMNL PLUG HSG F/H BLK |
| 分类 |
商业参数
| 其他名称 | A25757 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | Always was RoHS compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 14-30 AWG | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 柱间距 | 5.08 [.200] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Detent Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
| 电路数 | 2 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
