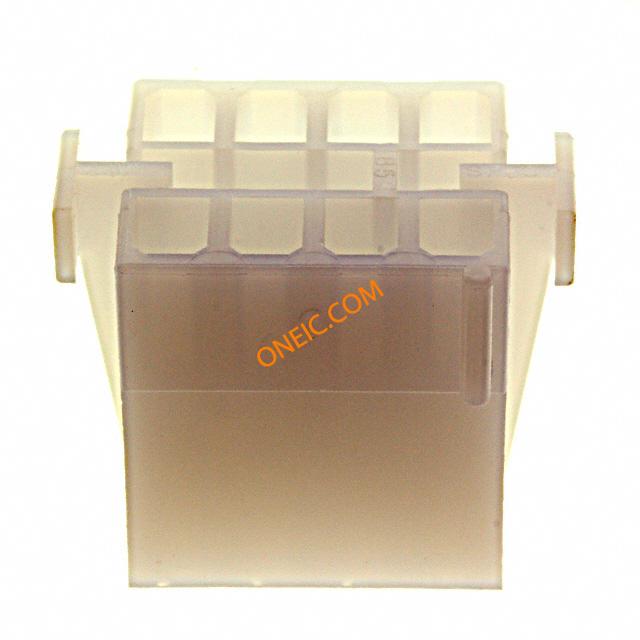

1-480283-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 8 POS MATE-N-LOK Housing,plug,cm Mate-n-lok,8 Way,Natural Power to the Board SOCKET FREE 8CRKT Conn Housing PL 8 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 84.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 8WAY Connector;CommercialMATE-N-LOK;Plug;8;Nylon;13A(Max.);250VAC;Natural TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 8 路 直 公 PCB 壳体 08P CMNL PLUG HSG M/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Always was RoHS compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 13 A |
| 绝缘电阻 | :500Mohm | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |

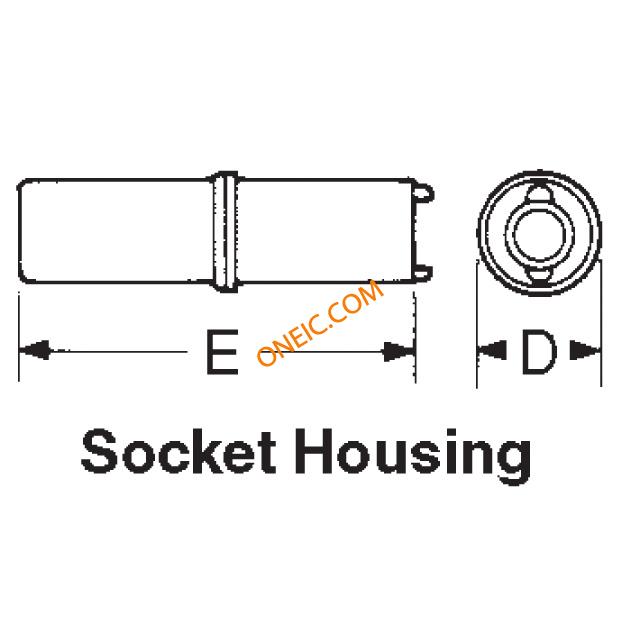

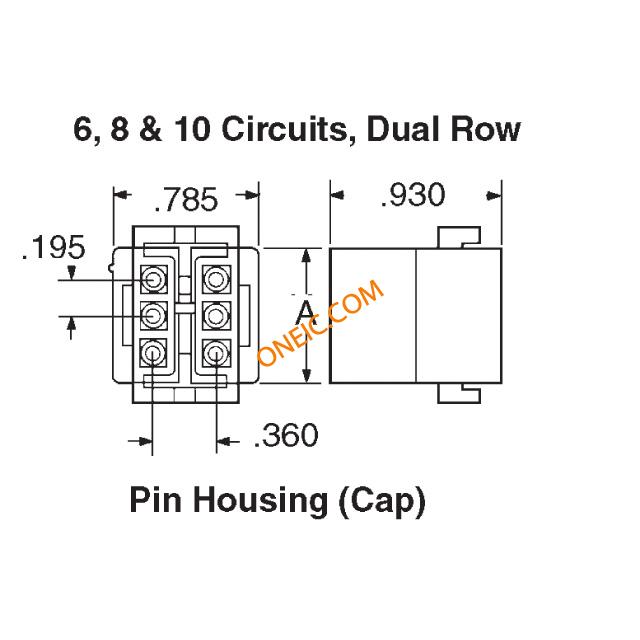

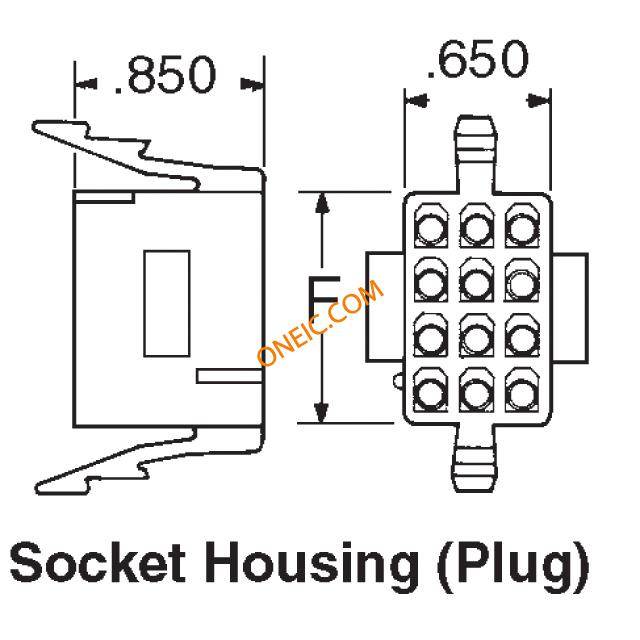

机械参数
| 颜色 | Natural | 深度 | 21.59mm |
| 间距 | 4.95 mm | 宽度 | 18.42mm |
| 重量 | 0.004 | 材料（通用） | :Nylon |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 排间距 | 0.360" (9.14mm) |
| 触头类型 | Female Socket | 柱间距 | 4.95 x 9.14 [.195 x .360] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | Plug |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | ||
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 8 |
| 适用产品/相关产品 | 5.08 mm Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
