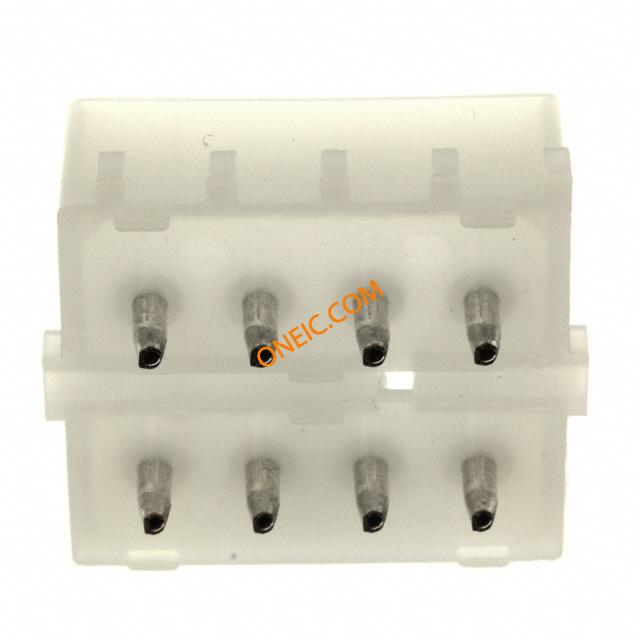

350212-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 8 POS 4.95mm Solder ST Thru-Hole 8 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 8 POS TIN PCB Power to the Board CONN PCM 8 POS TIN Conn Power HDR 8 POS 4.95mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 84.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, 8WAY Connector,Shell;CommercialMATE-N-LOK;Pin;8;13;250VAC;Nylon;Natural 08C CMNL HDR ASSY PC NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :TE - Commercial MATE-N-LOK Series | 额定电压 | 250 V |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 13 A |
| 绝缘电阻 | :500Mohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 19.93 mm |
| 间距 | 4.95 mm | 高度 | 10.29 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.360" (9.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :4.95mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 22.86 mm | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 8 | 接触件端接 | :Solder |
| 位数 | 8 | 安装孔直径 | :1.8mm |
| 接触长度 - 配合 | 0.180" (4.59mm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
