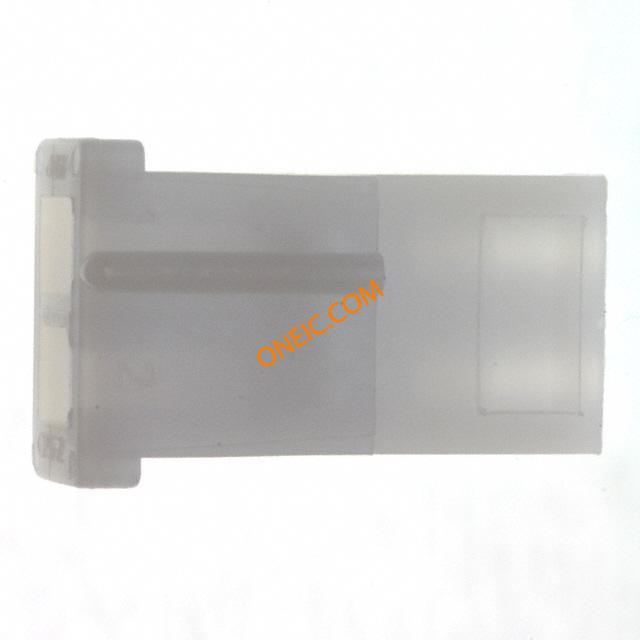

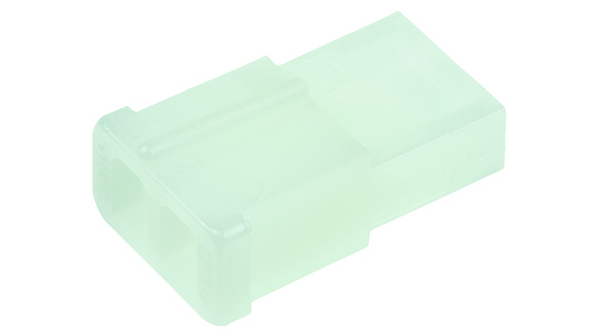

1-480318-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 5.08mm Crimp ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 2 POS MATE-N-LOK Male Compact Power Connector Plug 250V ac Power to the Board SOCKET FREE 2 CRKTS Conn Housing PL 2 POS 5.08mm Crimp ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Plug;2;Nylon;13A(Max.);250VAC;0.2in. Socket housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480318-0, TE Connectivity TE Connectivity 插座外壳 插头 公 250 V 交流 02P CMNL PLUG HSG F/H NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Always was RoHS compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V ac | 供电电压 | 250 |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 13 A |
| 绝缘电阻 | :500Mohm | 最小输入电压 | 250VAC |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 21.84 mm |
| 间距 | 5.08 mm | 高度 | 7.49 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 锁定类型 | Detent Lock | 包装方式 | Individual |
| 导线线规 | 14-30 AWG | 触头类型 | Female Socket |
| 柱间距 | 5.08 [.200] | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Plug |
| 壳体材料 | Nylon | 总长度 | 13.46 mm |
| 包装数量 | One Piece Housing | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Clear |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Mate-N-Lok |
| 产品子类型 | Housing | 电路数 | 2 |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号
1-480319-0
te connectivity / amp
Conn Housing RCP 2 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 2 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac/dc Power to the Board PIN FREE 2 CIRCUITS Conn Housing RCP 2 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 2WAY Connector;CommercialMATE-N-LOK;Receptacle(Cap);2;Nylon;13A(Max.);AMP Plug; wire-board; male; w/o terminals; 5.08mm; PIN:2; UL94V-2; 250V Pin housing Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 1-480319-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 2 路 直 母 电缆安装 PCB 壳体 02P CMNL CAP HSG NATL
350209-1
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS TIN PCB MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, VERTICAL, 5.08MM, 1 ROW, 2 WAY Connector,Shell;CommercialMATE-N-LOK;Pin;2;13;250VAC;Nylon;Natural Socket; wire-board; male; 5.08mm; PIN:2; tinned; Pin layout:1x2 sale Pin header, straight Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 350209-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY PC NATL
350422-1
te connectivity / amp

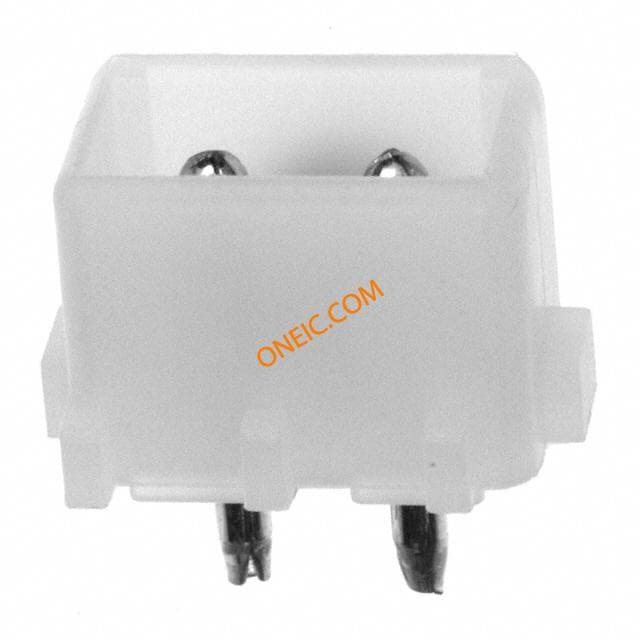

Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS VERT .200 TIN Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY PC NATL
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
350209-2
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS GOLD PCB

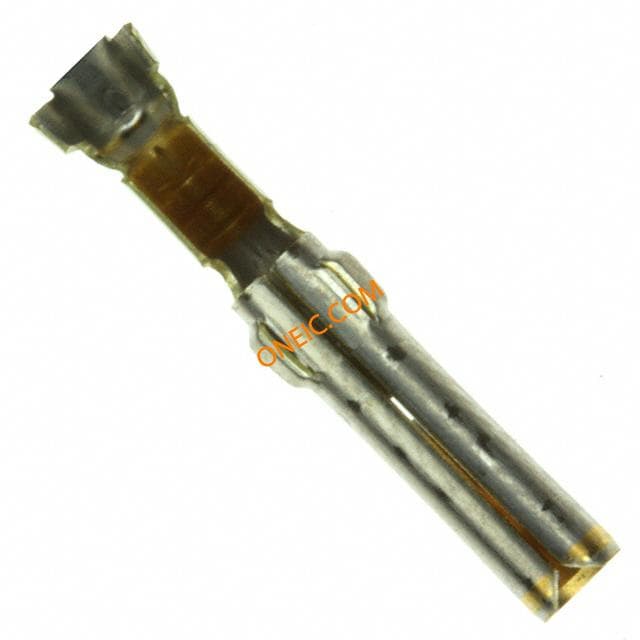

61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
61314-1
te connectivity / amp

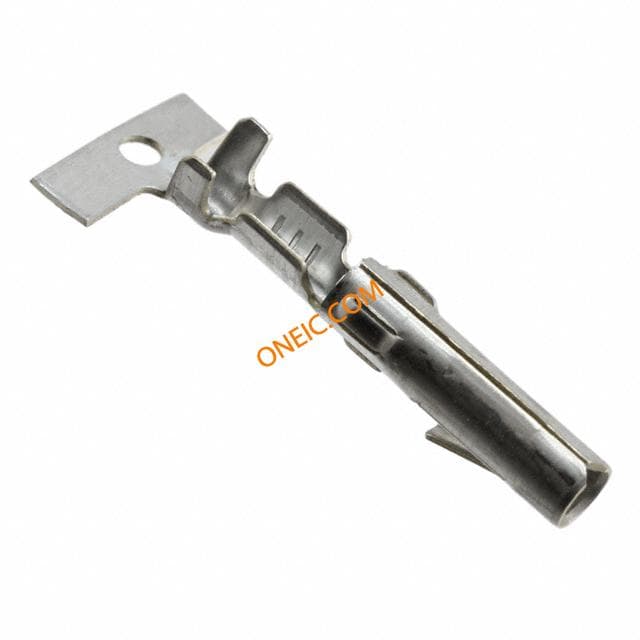

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR

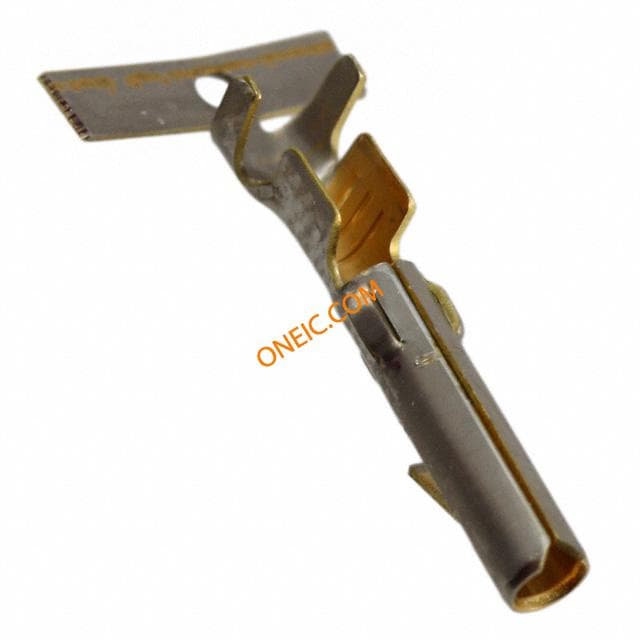

61117-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG MNL Mate-n-lok socket contact,0.50-2.00mm² Pin & Socket Connectors CMNL SOK 20-14 AUBR 61117-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,20-14AWG,2.13mm null TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK 20-14 AUBR
61314-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT SOCKET 24-18AWG M-N-L Pin & Socket Connectors CMNL SOK S/F 24-18 . .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
1586512-2
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 2POS GOLD Pin & Socket Connectors HDR PIN VERT 2P GOLD Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinThrough Hole Contact Termination TypeSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY PC NATL LF
61117-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board MNL SOK SF 20-14 .01 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 20-14 AUPHBZ

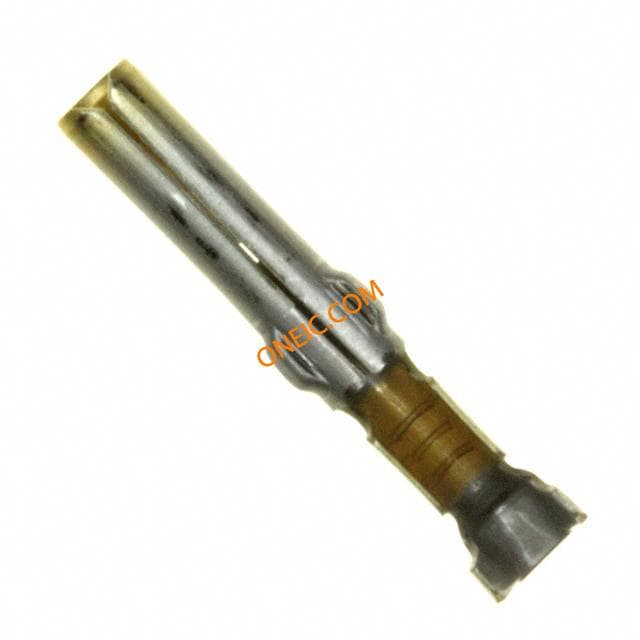

60617-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board SCKT 24-18 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Connectors,contactsforMATE-N-LOK,socket,24-18AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK AUBR L/P
794120-1
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder RA Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 2POS TIN 5.0 PKC 2 Male Right Angle Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board 2C CONN ASSY Conn Power HDR 2 POS 5.08mm Solder RA Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, R/A, 2WAY MATE-N-LOKHEADERASY,02PCMNLPCHDRASSYRA Socket; wire-board; male; 5.08mm; PIN:2; UL94V-0; Mat: polyamide TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直角 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL PC HDR ASSY RA
61117-1
te connectivity / amp

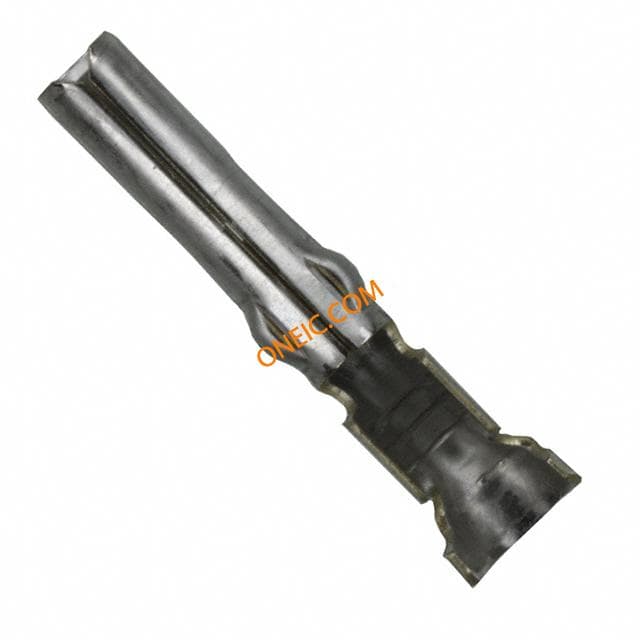

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG TIN MNL Contact,crimp,socket,20-14awg Power to the Board SPLIT PIN 24-18 REEL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG CONTACT,SOCKET,MATE-N-LOK,2.13MM,20-14AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPBR
60617-1
te connectivity / amp

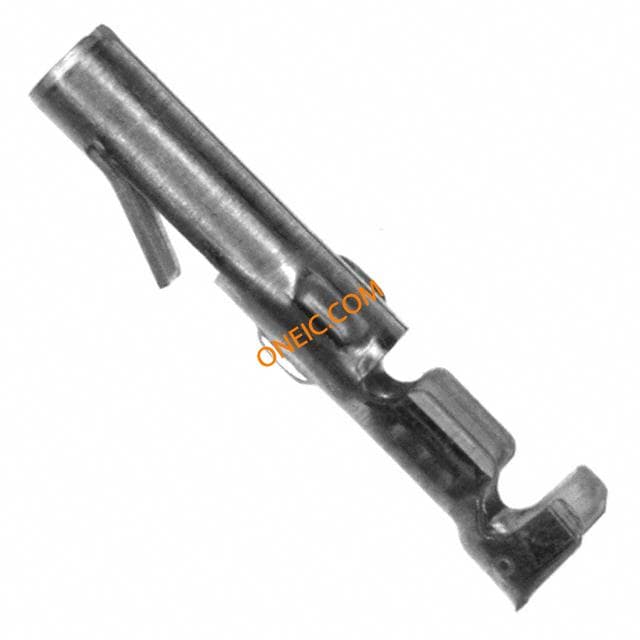

Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG TIN CRIMP Mate-N-Lok Com contact socket 24-18awg Power to the Board SOCKET 24-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18 AWG, CRIMP Contact,Socket,MATE-N-LOK,24-18AWG,Brass Crimp socket 13 A Female 24...18 AWG, 60617-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK SNBR L/P

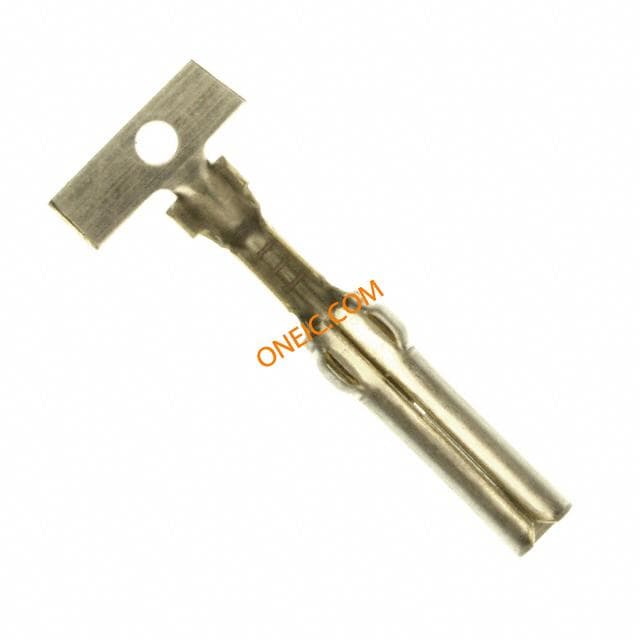

350078-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Mate-n-lok socket contact,0.05-0.40mm² Power to the Board SKT 30-22 BR/SN 26000 350078-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.05-0.40mm² Mate-N-Lok 30-22 AWG Pre-Tin Socket Contact TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 30-22 PTPBR

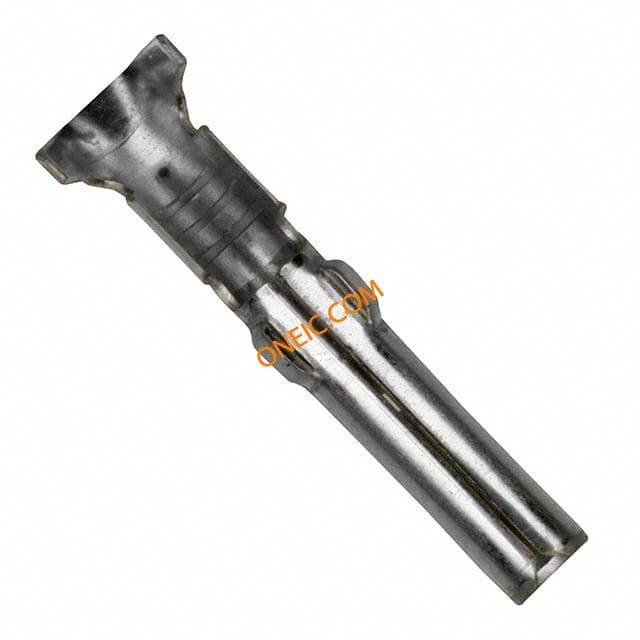

350557-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 16-18AWG TIN CRIMP Power to the Board L-PIN 24-18 AWG Reel of 3000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNL SOK SPECIAL .0126PTPBR
61173-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG GOLD CRIMP Power to the Board SOK 30-22 AUNIBR L/P Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNLSOKL/P Commercial Mate-N-Lok Pre-Tin 30-22 AWG Discrete Wire Crimp Socket Contact CMNL SOK 30-22 AUNIBR L/P
350557-4
te connectivity / amp

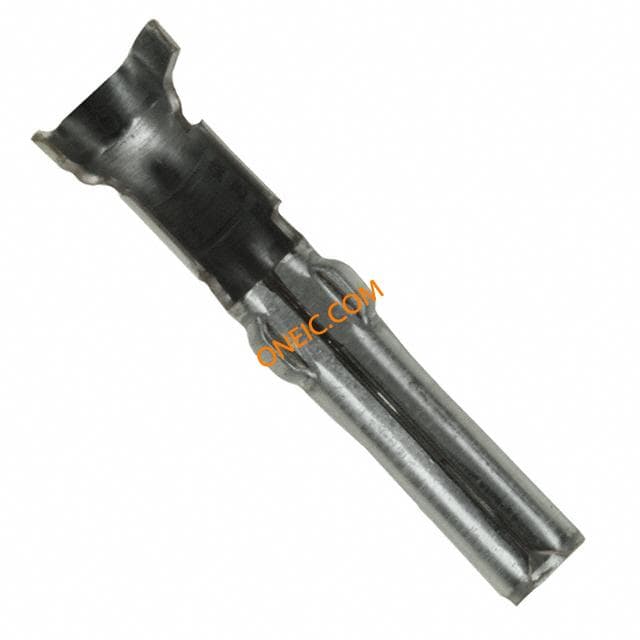

Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 16-18AWG TIN CRIMP Pin & Socket Connectors MNL SOK 20-14 350557-4 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = SocketWire Barrel Contact Termination TypeTerminate To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNL SOK SPECIAL .0125PTPPHBZ
