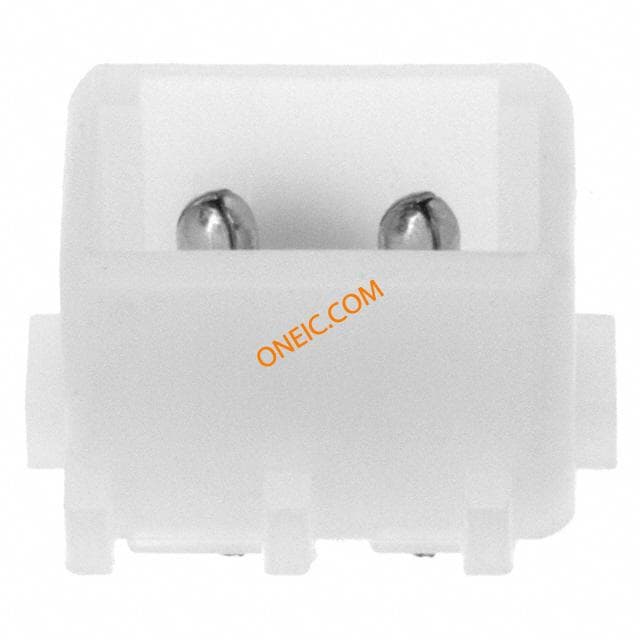

350209-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS TIN PCB MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, VERTICAL, 5.08MM, 1 ROW, 2 WAY Connector,Shell;CommercialMATE-N-LOK;Pin;2;13;250VAC;Nylon;Natural Socket; wire-board; male; 5.08mm; PIN:2; tinned; Pin layout:1x2 sale Pin header, straight Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 350209-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY PC NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 量程（°/s） | :Commercial MATE-N-LOK Series | 额定电压 | 250 V ac/dc |
| 最大额定电流 | 13A | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 高度 | 10.28 mm | 重量 | 0.008 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 方向 | straight | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 5.08mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 锁定特性 | lock |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 13.08 mm | 包装数量 | 125 |
| 连接器 - 电缆 | socket | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Solder | 位数 | 2 |
| 接触长度 - 配合 | 0.180" (4.59mm) | 触点材料 - 镀层 | tinned |
| 第一连接器安装类型 | :PCB | 第一连接器安装特征 | 1x2 |
产品信息
| SPG | 125 | 类型 | Power |
| 连接器性别 | HDR | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 适配器系列 | Commercial MATE-N-LOK | 端口数 | 1 Port |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | -30C to 105C | 结工作温度 | 105C |
