1-480318-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box .200" Centerline, 250 V, 13 A max. CONN PLUG HSNG 2POS .200 YELLOW Pin & Socket Connectors 02P PLUG HSG F/H YEL Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Box Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL PLUG HSG F/H YELL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | Always was RoHS compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Yellow | 深度 | 21.84 mm |
| 间距 | 5.08 mm | 高度 | 7.49 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 壳体颜色 | 黄色 |
| 触头类型 | Female Socket | 柱间距 | 5.08 [.200] |
| 外壳颜色 | Yellow | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Detent Lock | 安装样式 | PCB |
| 排数 | 1 | 封装形式 | Plug |
| 壳体材料 | Nylon | 总长度 | 13.46 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | ||
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Housing | 电路数 | 2 |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
350209-1
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS TIN PCB MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, VERTICAL, 5.08MM, 1 ROW, 2 WAY Connector,Shell;CommercialMATE-N-LOK;Pin;2;13;250VAC;Nylon;Natural Socket; wire-board; male; 5.08mm; PIN:2; tinned; Pin layout:1x2 sale Pin header, straight Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 350209-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY PC NATL
350422-1
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS VERT .200 TIN Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY PC NATL
350209-2
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS GOLD PCB
2-350539-1
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS PCB RED TIN Power to the Board 02P HDR SHORT RED Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY SHORT RED
350539-2
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Power to the Board PCB PIN HDR 2P 5000 .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS VERT .200 AU Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY SHORT NATL
350540-1
te connectivity / amp

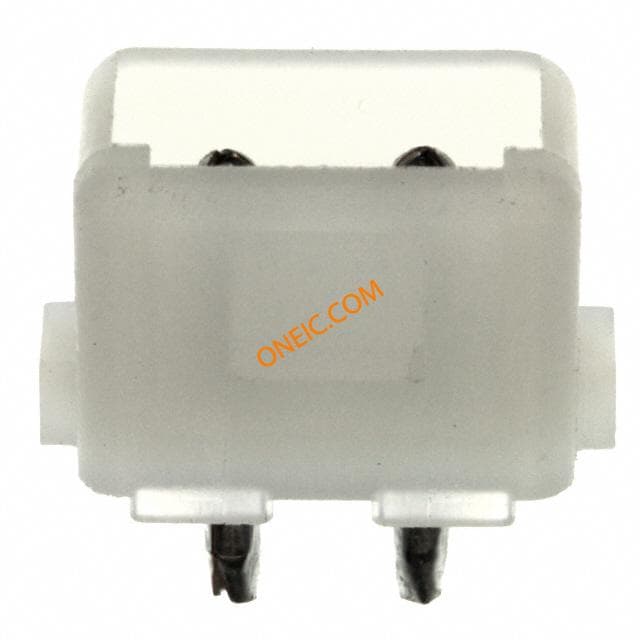

Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS VERT .200 TIN Power to the Board PCB PIN HEADER 2P Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2Terminal 1Port Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinContact Type = PinThrough Hole Contact Termination TypeIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY LONG NATL
1586530-2
te connectivity / amp
Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 2POS GOLD MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board HDR PIN 1X02C VRT V2 Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HDR,RCP,2WAYPINCONTACT TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY SHORT LF
350539-1
te connectivity / amp

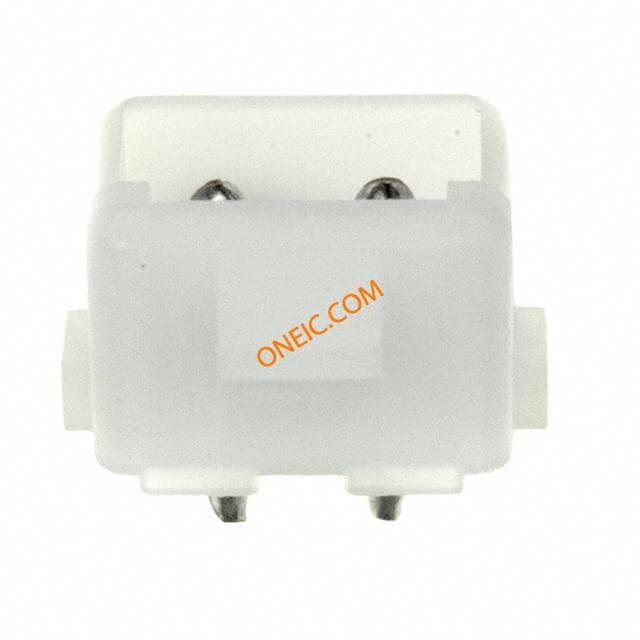

Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2POS VERT .200 TIN MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 2POS, 4.95MM Connector,Shell;CommercialMATE-N-LOK;Pin;2;13;250VAC;Nylon;Natural TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY SHORT NATL
61320-1
te connectivity / amp

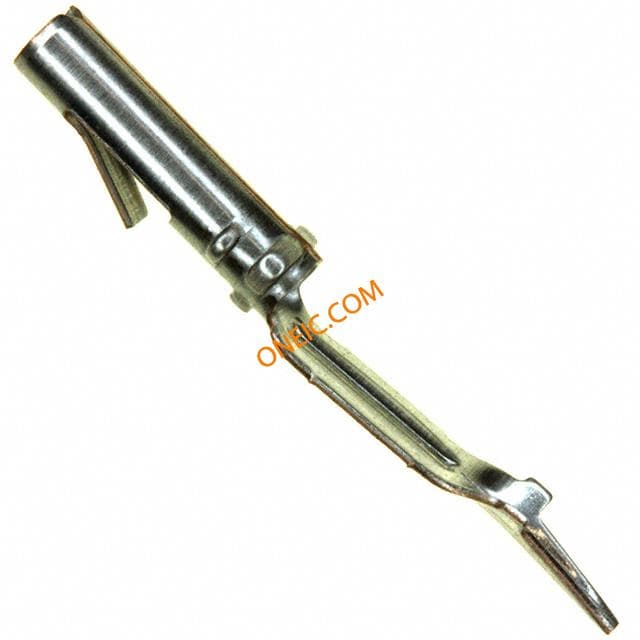

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET TIN PCB MATE-N-LOK Power to the Board MATE-N-LOCK SOCKET Contact SKT Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag Product Highlights:ContactContact Diameter = 2.13 mmMount = Printed Circuit BoardLoose PieceContact Type = Printed Circuit Board SocketSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin Printed Circuit Board Tab Socket Contact CMNL PCB SOK PTPHBZ
