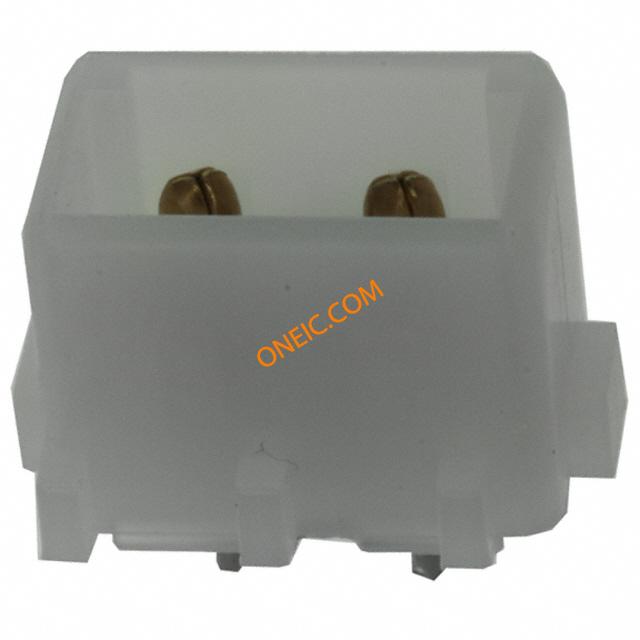

1586512-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 2POS GOLD Pin & Socket Connectors HDR PIN VERT 2P GOLD Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinThrough Hole Contact Termination TypeSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 02P CMNL HDR ASSY PC NATL LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 引脚数 | 2 | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 100 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 位数 | 2 |
| 外壳尺寸-插件 | 插头 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.81 mm [ .149 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Header Assemblies | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
