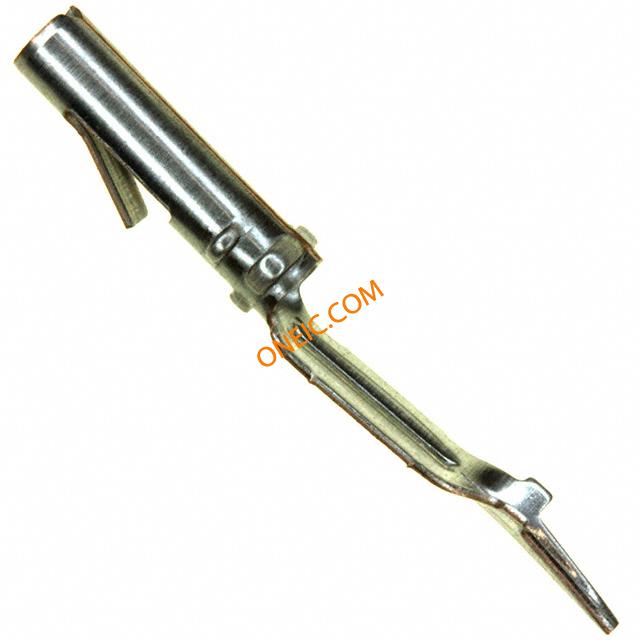

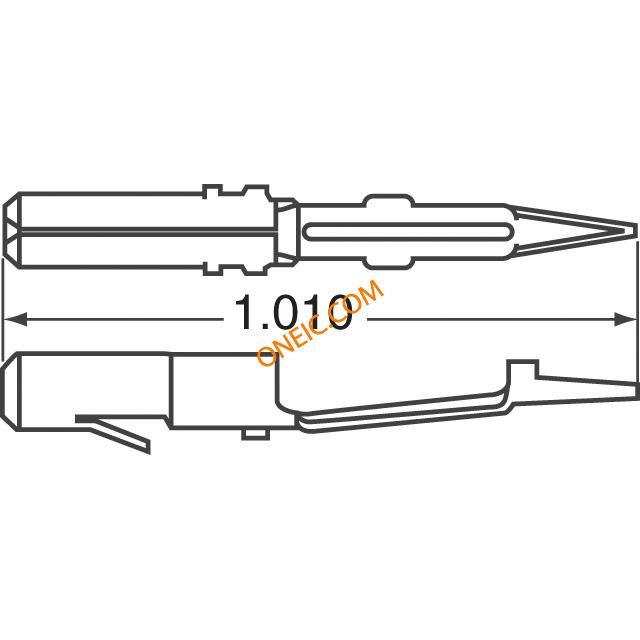

61320-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET TIN PCB MATE-N-LOK Power to the Board MATE-N-LOCK SOCKET Contact SKT Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag Product Highlights:ContactContact Diameter = 2.13 mmMount = Printed Circuit BoardLoose PieceContact Type = Printed Circuit Board SocketSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin Printed Circuit Board Tab Socket Contact CMNL PCB SOK PTPHBZ |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 最小供电电压 | 250VDC/250VAC |
机械参数
| 间距 | Not Required mm | 镀层 | 预镀锡 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 插入件材料 | 磷青铜 | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 25.65 mm |
| 包装数量 | 1000 | 端接样式 | Solder Tab |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | No |
| 触点数 | 1 POS | 接触件端接 | Solder, PCB |
| 兼容外壳尺寸（如TM-700等） | MATE-N-LOK 外壳 | 接触件表面处理 - 配合 | 预镀锡 |
| 法兰上方插针尺寸 | 2.13 mm [ .084 in ] | ||
产品信息
| 备注 | 针对最大板厚度 .062 — 板孔尺寸 .057 +/- .003 的情况。 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | Mate-N-Lok |
| 产品子类型 | Contacts | 端口数 | 1 Port |
| 应用细节 | Power | ||
