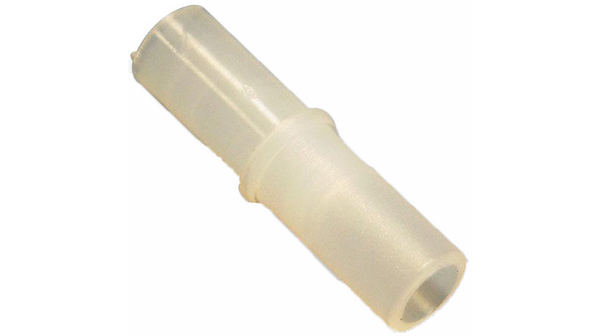

点击放大查看

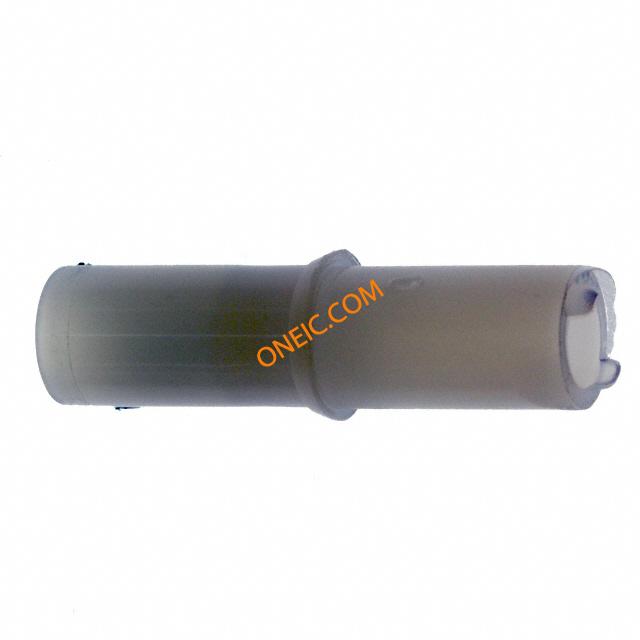

1-480349-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 1 POS ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 1 POS MATE-N-LOK Power to the Board SOCKET FREE 1 CRKT Conn Housing PL 1 POS ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 1In-Line Contact LayoutHousing Type = PlugSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 1WAY Connector;CommercialMATE-N-LOK;Plug;1;Nylon;13A(Max.);250VAC;Natural Socket housing Pitch5.08 mm Poles 1 MATE-N-LOK Commercial, 1-480349-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm 节距 1 路 直 公 PCB 连接器外壳 01P CMNL PLUG HSG F/H NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 23.12 mm |
| 间距 | Not Required mm | 高度 | 6.73 mm |
| 长度 | :22.1mm | 重量 | 0.034 |
| 材料（通用） | :Nylon | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Friction Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Plug |
| 壳体材料 | Nylon | 总长度 | 6.73 mm |
| 包装数量 | One Piece Housing | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 外径 | :6.6mm | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 1 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Mate-N-Lok |
| 产品子类型 | Housing | 电路数 | 1 |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
环境参数
| 工作温度 | -55C to 105C | ||
