5390377-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tray CONN PLUG 68POS 30AWG SER III I/O Connectors 68P A/P PLUG 25 CL 30AU Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tray Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Ribbon CableRibbon Cable Centerline Spacing = .64 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, PLUG, 68POS, IDC/IDT 68 POS A/P PLUG 25 CL 30AU |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 重量 | 0 | 包装方式 | Tray |
| 端接方式 | IDT | 触头类型 | Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | D-Type |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | IDC | 触点数 | 68 |
| 接触件端接 | :IDC / IDT | 位数 | 68 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 系列 | Amplimite 0.05 | 产品特性 | Feed Through |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
相关型号
1-749656-2
te connectivity / amp
Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 68POS .050 PNLMT W/COV I/O Connectors 050 068R STR CBL Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68Wire/Cable Type = Ribbon Cable, Round Jacketed CableRibbon Cable Centerline Spacing = 1.27 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, RECEPTACLE 68POS IDC/IDT TE Connectivity Amplimite .050 III 系列 68 路 1.27mm节距 直 面板安装 母 SCSI 连接器, 压接, 快速闩锁 68 50SR PANEL MOUNT RCPT
5749721-7
te connectivity / amp
Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 050 068R VRT PCB .050 Series Board Mount Connectors CONN RECEPT 68POS VERT .050 GOLD Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 68PCB Mount Angle = VerticalThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MM Conn;D-Sub;PCBSocket;68Pos;STR;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 68 路 直向 D-Sub 连接器, 焊接 端接 68 50SR VERT RCPT ASSY
749656-7
te connectivity / amp
Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 68POS .050 PNLMT W/COV I/O Connectors 68 POS RECEPTACLE 256 68 50SR PANEL MOUNT RCPT
5787169-7
te connectivity / amp
Conn D-Subminiature RCP 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 68 50SR R/A RCPT ASY .050 Series Board Mount Connectors 68 50SR RCPT ASSY,REDESIGN Conn D-Subminiature RCP 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MM Conn;D-Sub;PCBSocket;68Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 68 路 直角 印刷电路板安装 PCB D-sub 连接器 插座 68 50SR R/A RCPT ASSY,RDSN L/F
1761028-4
te connectivity / amp
Conn D-Subminiature SKT 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port Tube D-Sub Standard Connectors 050 068R R/A PCB .050 Series Board Mount Connectors CONN 68POS .05 AMPLMT RECP RTAGL Conn D-Subminiature SKT 68 POS 2.54mm Solder RA Thru-Hole 68 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 68ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub RECEPTACLE, SCSI, R/A, 68W Conector,rcpD,90deg,PCB,wRail,68W TE Connectivity Amplimite .050 III 系列 1.27mm 节距 68 路 直角 通孔安装 PCB D-sub 连接器 插座 68 50SR R/A RCPT ASSY,LEAD FREE

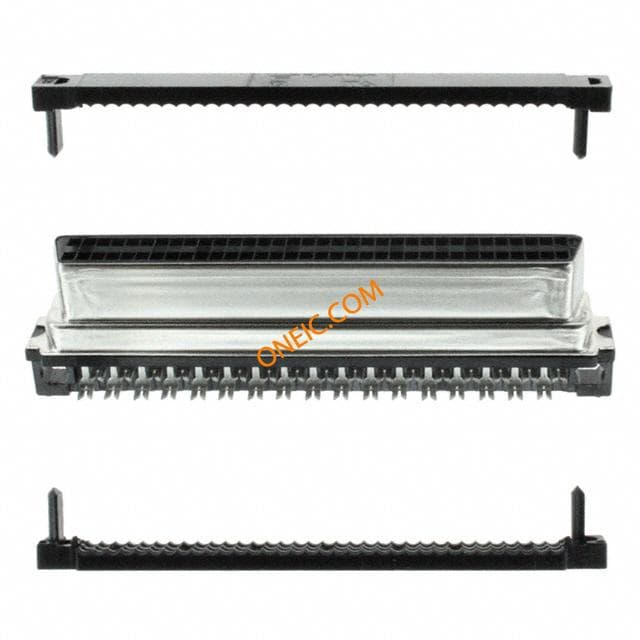

5749699-7
te connectivity / amp
Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) 68 50SR CABLE RCPT KIT AMPLIMITE .050 d-sub IDC socket,68 way I/O Connectors SHIELDED RECPT 68P w/unassembled cvrs Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, RECEPTACLE 68POS IDC/IDT Conn;D-Sub;CableSocket;68Pos;STR;IIISeries;IDC;30-28AWG TE Connectivity Amplimite .050 III 系列 68 路 1.27mm节距 直角 电缆安装 母 SCSI 连接器, 压接, 快速闩锁

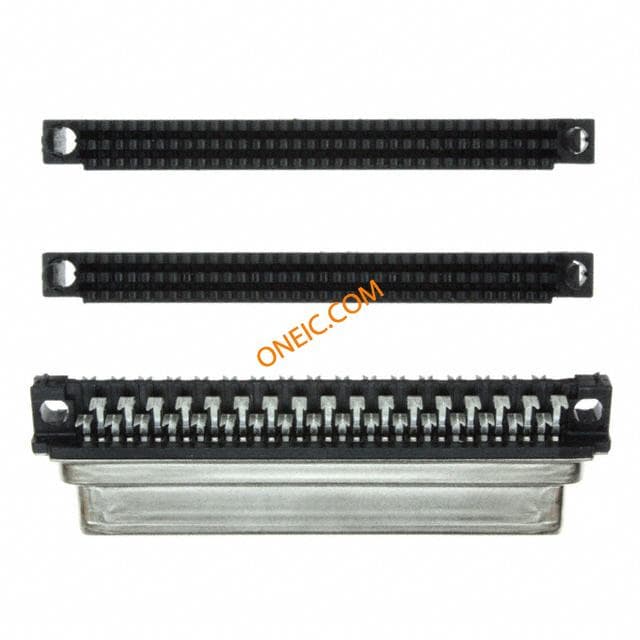

5749210-7
