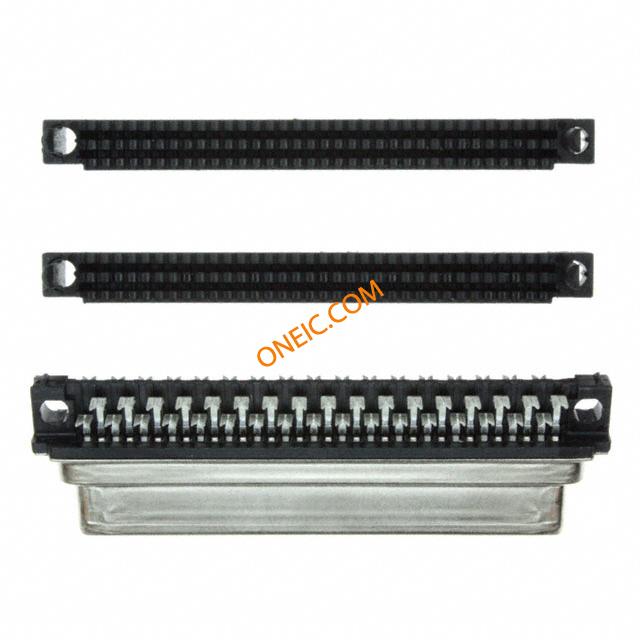

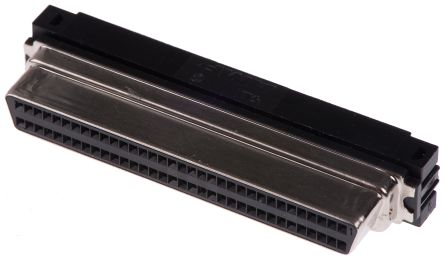

5749210-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RECEPT 68POS .050SR W/COVER AMPLIMITE .050 d-sub IDC plug, 68 pin I/O Connectors SHIELDED RECPT 68P w/assembled cvrs Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub AMPLIMITE.050d-subIDCplug,68pin TE Connectivity Amplimite .050 III 系列 68 路 1.27mm节距 直角 电缆安装 母 SCSI 连接器, 压接, 快速闩锁 68 50SR CABLE RCPT ASSY |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30V | 最大额定电流 | 1A |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 宽度 | 15.04mm | 高度 | 15.04 mm |
| 长度 | 51.54mm | 包装方式 | Bulk |
| 电缆类型 | Round Jacketed Cable | 屏蔽类型 | Yes |
| 端接方式 | IDT | 触头类型 | Signal |
| 第二连接器 | Without | 安装类型 | Cable Mount |
| 外壳镀层 | Tin-Nickel Alloy | 连接器类型 | IDC |
| 接触镀层 | Tin over Nickel | 安装导轨 | Without |
| 安装样式 | Cable | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 触头材料 | Phosphor Bronze | 线缆终端 | Assembled |
| 壳体材料 | Thermoplastic | 总长度 | 51.54 mm |
| 面板安装类型 | Without | 端接样式 | With |
| 触点数 | 68 | 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] |
| 位数 | 68 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.05-0.09² [30-28] |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 备注 | Receptacle connector requires backshell kit for complete assembly | 类型 | SCSI |
| 制动位 | Without | 连接器性别 | RCP |
| 系列 | Series III | 产品特性 | Shielded |
| 产品子类型 | Connector | 连接类型 | Wire |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 结工作温度 | 105C |
