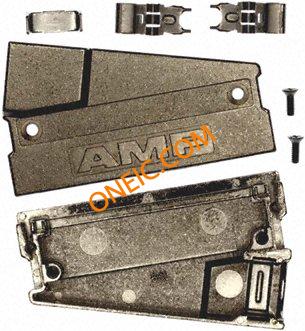

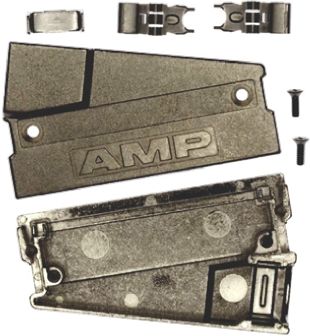

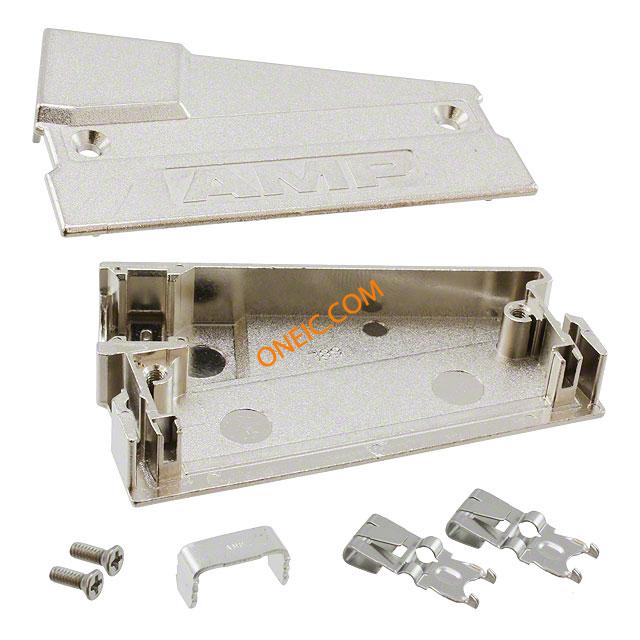

5749204-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 68 POS SCSI Backshell Kit Zinc Nickel Over Copper Finish Individual D-Sub Backshells 68 50SR KIT 75D UK .050 Series Cable Connectors (SCSI) 68 50SR KIT,75D,UK SCSI Backshell kit 68 way Amplimite Backshell Kit 75� Nickel Over Copper Zinc Individual Backshell Kit 75° Nickel Over Copper Zinc Individual Backshell Kit 75° Nickel Over Copper Zinc Individual Product Highlights:HardwareHardware Type = Backshell KitNumber of Positions = 68Cable Insulation Diameter = 11.18 mmWith Mating Connector LockSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub BACKSHELL, SCSI-2, ANGLED, 68WAY Hood;D-Sub;68Pos;75DegExit;SeriesIII;Zinc;0.440In.CblDia;EMI/RFI;SpringLatch TE Connectivity SCSI 连接器底壳 |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Silver | 深度 | 35.69mm |
| 宽度 | 13.21mm | 长度 | 61.34mm |
| 重量 | 0.044 | 镀层 | Nickel over Copper |
| 材料（通用） | Metal, Zinc | 包装方式 | Bulk |
| 屏蔽 | Shielded | 出线方向 | 75° |
| 电缆类型 | Round | 外壳尺寸 | 68 |
| 屏蔽类型 | Yes | 第二连接器 | With |
| 外壳镀层 | Nickel over Copper | 电缆直径 | 0.440In. |
| 电缆端类型 | 75 deg | 壳体镀层 | :Zinc |
| 螺丝材料 | Stainless Steel | 外壳材料（壳体） | Zinc |
| 绑带材料 | Steel | 锁定特性 | Spring Latch |
| 本体材料 | :Copper | 总长度 | 61.34 mm |
| 尺寸/外形 | 61.34 x 13.21 x 35.69mm | 连接器颜色 | :Zinc |
| 绝缘直径 | 11.18 [0.440] | 位数 | 68 |
| 电缆对数 | 1 | 螺钉材料 - 镀层 | Stainless Steel |
| 后壳材料及镀层 | Nickel over Copper | 外径-未扩张 | :11.18mm |
产品信息
| 备注 | Each backshell kit includes upper and lower backshells, two spring latches, one | 类型 | Backshell Kit |
| 系列 | Series III | 产品特性 | Assembly Kit, Spring Lock |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Hardware | 硬件类型 | Backshell Kit |
| 附件类型 | Two Piece Backshell | 连接类型 | Wire |
| 射频系列/标准 | 5749204 | 适用产品/相关产品 | 749204-2 |
