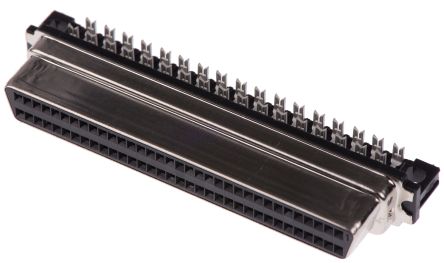

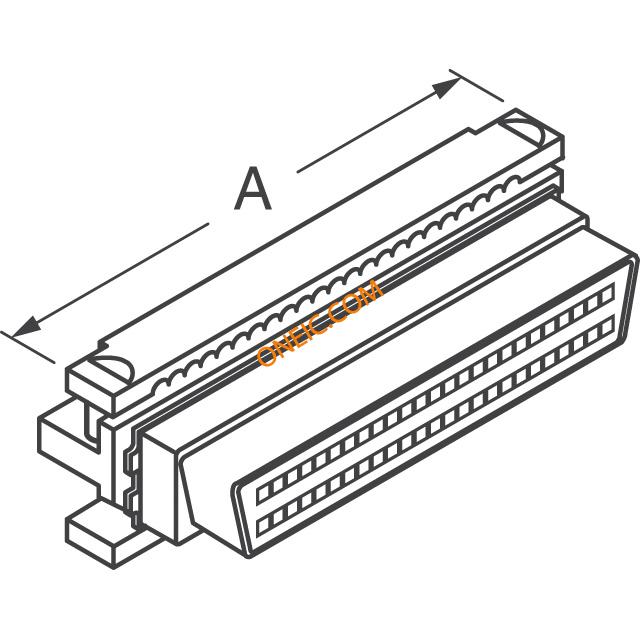

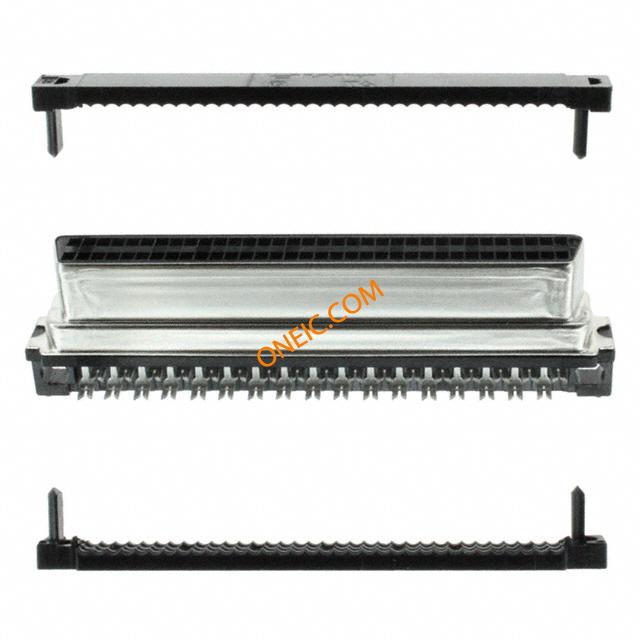

5749699-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) 68 50SR CABLE RCPT KIT AMPLIMITE .050 d-sub IDC socket,68 way I/O Connectors SHIELDED RECPT 68P w/unassembled cvrs Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, RECEPTACLE 68POS IDC/IDT Conn;D-Sub;CableSocket;68Pos;STR;IIISeries;IDC;30-28AWG TE Connectivity Amplimite .050 III 系列 68 路 1.27mm节距 直角 电缆安装 母 SCSI 连接器, 压接, 快速闩锁 |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 宽度 | 15.04mm | 长度 | 51.54mm |
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | Round Jacketed Cable | 导线线规 | 30-28 |
| 屏蔽类型 | Yes | 端接方式 | IDT |
| 触头类型 | Signal | 第二连接器 | Without |
| 基体材料 | :Plastic | 安装类型 | Cable Mount |
| 外壳镀层 | Tin-Nickel Alloy | 行程角度 | Straight |
| 连接器类型 | IDC | 接触镀层 | Tin over Nickel |
| 安装导轨 | Without | 安装样式 | Cable |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 触头材料 | Phosphor Bronze |
| 线缆终端 | Unassembled | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 主要材料 | D-Subminiature |
| 端接样式 | With | 触点数 | 68 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] |
| 位数 | 68 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.05-0.09² [30-28] |
| 第一连接器安装类型 | :Cable | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 备注 | Receptacle connector requires backshell kit for complete assembly | 类型 | SCSI |
| 制动位 | Without | 连接器性别 | RCP |
| 系列 | Series III | 产品特性 | Shielded |
| 制造商全称 | III | 产品子类型 | Connector |
| 连接类型 | Wire | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
