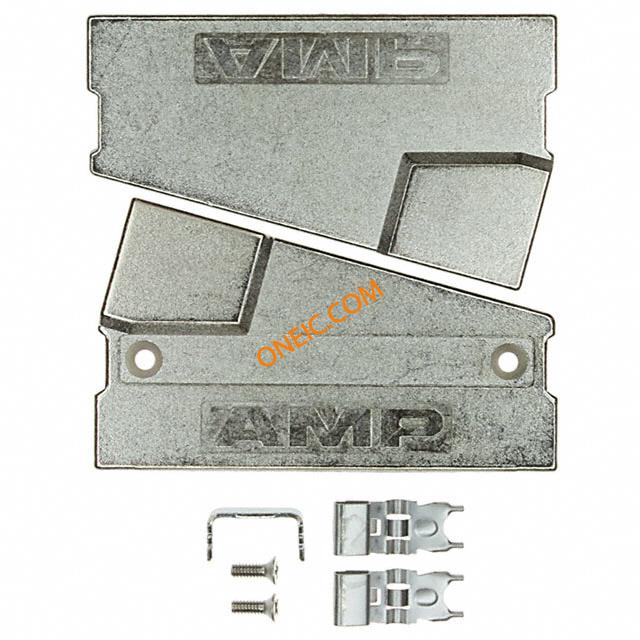

点击放大查看
749204-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 68 POS SCSI Backshell Kit Zinc Nickel Over Copper Finish .050 Series Cable Connectors (SCSI) 68 50SR KIT,75D,UK I/O Connectors 68 50SR KIT 75D UK Backshell Kit 75° Nickel Over Copper Zinc Backshell Kit 75° Nickel Over Copper Zinc Product Highlights:HardwareHardware Type = Backshell KitNumber of Positions = 68Cable Insulation Diameter = 10.16 mmWith Mating Connector LockSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub |
| 分类 |
商业参数
| 产品 | Hardware | 交货时间 | 70 Days |
| 子类别 | Backshells | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 连接器阻抗 | 75 | ||
机械参数
| 颜色 | Silver | 镀层 | Nickel over Copper |
| 材料（通用） | Metal, Zinc | 锁定类型 | 带有 |
| 包装方式 | 袋 | 屏蔽 | Shielded |
| 出线方向 | 75° | 电缆类型 | Round |
| 屏蔽类型 | Yes | 螺纹尺寸 | 2-56 UNC |
| 第二连接器 | With | 安装类型 | Angled 75 deg |
| 连接器类型 | 电线和电缆 | 安装样式 | Cable |
| 螺丝材料 | Stainless Steel | 外壳材料（壳体） | 锌 |
| 绑带材料 | Steel | 锁定特性 | Spring Latch |
| 包装数量 | 1 | 外径 | 10.16 mm [ .4 in ] |
| 触点数 | 68 | 绝缘直径 | 10.16 [0.400] |
| 位数 | 68 | 衬套/护套类型 | 带有 |
| 螺纹/螺钉/孔尺寸 | 不锈钢 | 接触件表面处理 - 配合 | 钢 |
| 夹持材料 - 镀层 | 铜打底镀镍 | 螺钉材料 - 镀层 | Stainless Steel |
| 后壳材料及镀层 | Nickel over Copper | ||
产品信息
| 备注 | Each backshell kit includes upper and lower backshells, two spring latches, one | 类型 | Backshell Kit |
| 系列 | Series III | 产品特性 | Assembly Kit, Spring Lock |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Hardware | 硬件类型 | Backshell Kit |
| 附件类型 | Two Piece Backshell | 连接类型 | Wire |
| 端口数 | 1 | 射频系列/标准 | 749204 |
| 其他规格 | 不锈钢 | 适用产品/相关产品 | 5749204-1 |
