点击放大查看

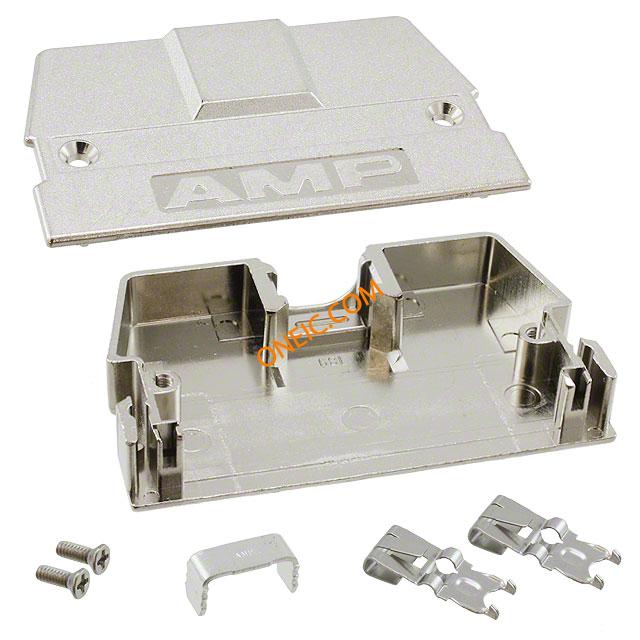

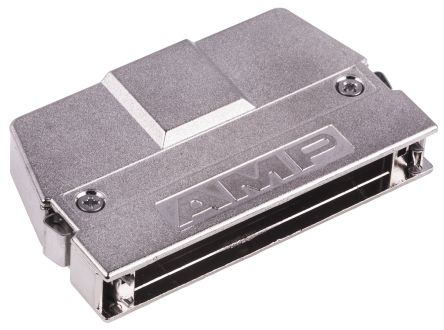

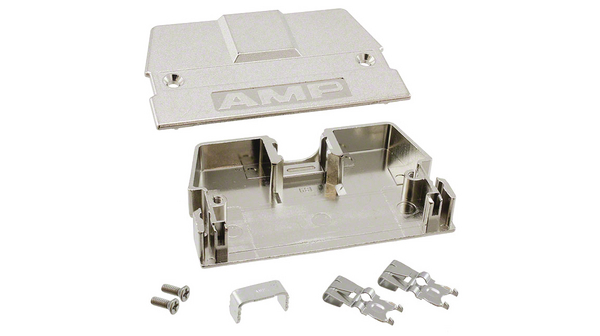

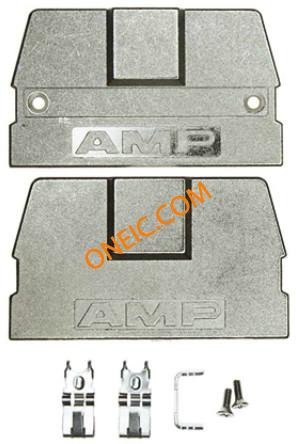

5749195-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell Kit 68 POS Zinc D-Sub Backshells 68 POS BKSHELL KIT SHIELDED W/ LATCHES .050 Series Cable Connectors (SCSI) CONN 68POS AMPLMT BACKSHL STYL A SCSI Backshell kit 68 way Amplimite Backshell 180� Nickel Over Copper Zinc Individual Backshell 180° Nickel Over Copper Zinc Individual Backshell 180° Nickel Over Copper Zinc Individual Product Highlights:HardwareHardware Type = Backshell KitNumber of Positions = 68Cable Insulation Diameter = 11.18 mmWith Mating Connector LockSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SHIELDED BACKSHELL KIT, SIZE 2, ZINC Hood;D-Sub;68Pos;StraightExit;SeriesIII;Zinc;0.440In.CblDia;SpringLatch SCSI 2 hood 68, 5749195-2, TE Connectivity TE Connectivity SCSI 连接器底壳 68 50SR KIT,ST,UK |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Silver | 深度 | 10.16mm |
| 宽度 | 35.7mm | 高度 | 35.7 mm |
| 长度 | 61.34mm | 重量 | 0.0001 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 68Positions | 屏蔽类型 | Yes |
| 第二连接器 | With | 外壳镀层 | Tin over Nickel |
| 电缆直径 | 11.18 mm | 电缆端类型 | Straight |
| 连接器类型 | :D Sub | 螺丝材料 | Stainless Steel |
| 外壳材料（壳体） | Zinc | 绑带材料 | Steel |
| 锁定特性 | Spring Latch | 本体材料 | :Zinc |
| 总长度 | 61.34 mm | 尺寸/外形 | 61.34 x 35.7 x 10.16mm |
| 绝缘直径 | 11.18 [0.440] | 位数 | 68 |
| 外壳尺寸-插件 | :- | 电缆对数 | 1 |
| 螺钉材料 - 镀层 | Stainless Steel | 后壳材料及镀层 | Nickel over Copper |
产品信息
| 备注 | Each backshell kit includes upper and lower backshells, two spring latches, one | 类型 | Backshell Kit |
| 系列 | Series III | 产品特性 | Assembly Kit, Spring Lock |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Hardware | 硬件类型 | Backshell Kit |
| 附件类型 | Two Piece Backshell | 连接类型 | Wire |
| 射频系列/标准 | 5749195 | 适用产品/相关产品 | 749195-2 |
