点击放大查看

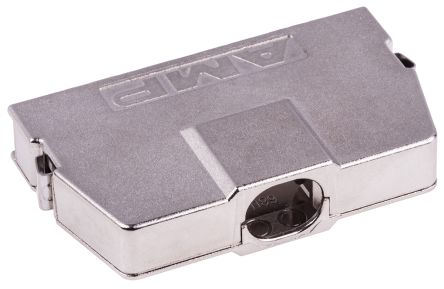

749195-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell Kit 68 POS Zinc .050 Series Cable Connectors (SCSI) CONN 68POS AMPLMT BACKSHL STYL A I/O Connectors 68 POS BKSHELL KIT SHIELDED W/ LATCHES Backshell Kit 180� Nickel Over Copper Zinc Backshell Kit 180° Nickel Over Copper Zinc Backshell Kit 180° Nickel Over Copper Zinc Product Highlights:HardwareHardware Type = Backshell KitNumber of Positions = 68Cable Insulation Diameter = 11.18 mmWith Mating Connector LockSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub TE Connectivity Amplimite 0.050 系列 68 路 直 锌 D-sub 连接器底壳 , 带应力消除 68 50SR KIT,ST,UK |
| 分类 |
商业参数
| 产品 | Accessories | 交货时间 | 70 Days |
| 子类别 | Backshells | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 连接器阻抗 | 180 | ||
机械参数
| 颜色 | Silver | 深度 | 13.21 mm |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc |
| 锁定类型 | 带有 | 包装方式 | 袋 |
| 屏蔽 | Shielded | 出线方向 | 180° |
| 电缆类型 | Round | 方向 | 直 |
| 屏蔽类型 | Yes | 螺纹尺寸 | 2-56 UNC |
| 第二连接器 | With | 电缆开口 | 180° |
| 安装类型 | Straight | 连接器类型 | 电线和电缆 |
| 螺丝材料 | Stainless Steel | 外壳材料（壳体） | 锌 |
| 绑带材料 | Steel | 锁定特性 | Spring Latch |
| 材料表面处理 | Nickel over Copper | 壳体材料 | Zinc |
| 总长度 | 61.34 mm | 包装数量 | 1 |
| 外径 | 11.18 mm [ .44 in ] | 触点数 | 68 |
| 绝缘直径 | 11.18 [0.440] | 位数 | 68 |
| 衬套/护套类型 | 带有 | 螺纹/螺钉/孔尺寸 | 不锈钢 |
| 接触件表面处理 - 配合 | 钢 | 供应商器件封装 | Assembly Hardware, Strain Relief |
| 夹持材料 - 镀层 | 铜打底镀镍 | 螺钉材料 - 镀层 | Stainless Steel |
| 静电放电屏蔽 | 是 | 后壳材料及镀层 | Nickel over Copper |
产品信息

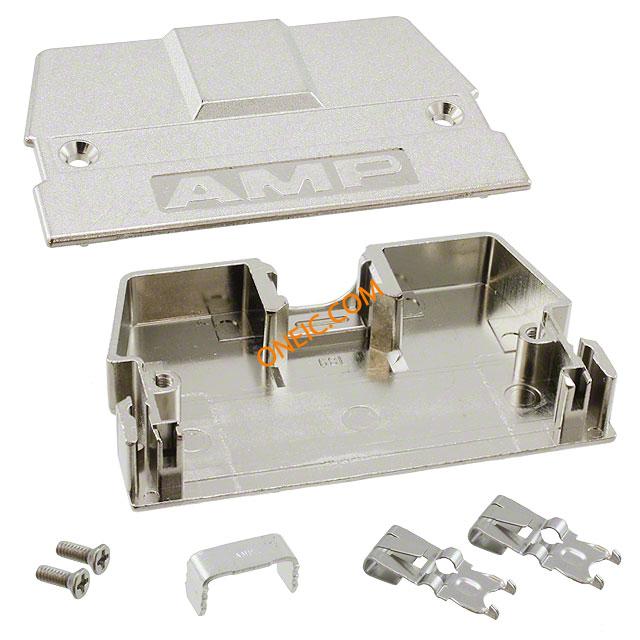

| 备注 | Each backshell kit includes upper and lower backshells, two spring latches, one | 类型 | Kit |
| 系列 | Series III | 产品特性 | Assembly Kit, Spring Lock |
| 硬件配件 | Assembly Hardware, Strain Relief | 主要用途 | Assembly Kit, Spring Lock |
| 制造商全称 | AMP | 产品子类型 | Hardware |
| 硬件类型 | Backshell Kit | 附件类型 | Two Piece Backshell |
| 连接类型 | Wire | 端口数 | 1 |
| 射频系列/标准 | 749195 | 其他规格 | 不锈钢 |
| 适用产品/相关产品 | 5749195-2 | ||
