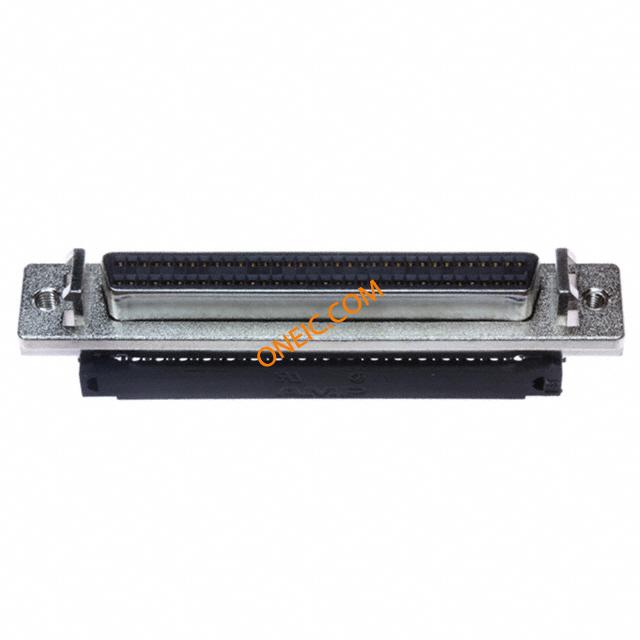

1-749656-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN RCPT 68POS .050 PNLMT W/COV I/O Connectors 050 068R STR CBL Conn SCSI RCP 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 68Wire/Cable Type = Ribbon Cable, Round Jacketed CableRibbon Cable Centerline Spacing = 1.27 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, RECEPTACLE 68POS IDC/IDT TE Connectivity Amplimite .050 III 系列 68 路 1.27mm节距 直 面板安装 母 SCSI 连接器, 压接, 快速闩锁 68 50SR PANEL MOUNT RCPT |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 8 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 重量 | 0.014 | 包装方式 | Tube |
| 电缆类型 | Ribbon Cable, Round Jacketed Cable | 屏蔽类型 | No |
| 端接方式 | IDT | 螺纹尺寸 | 2-56 |
| 触头类型 | Signal | 第二连接器 | With |
| 基体材料 | :Plastic | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel over Copper | 连接器类型 | IDC |
| 接触镀层 | Tin over Nickel | 法兰特征 | Housing/Shell (2-56); Latchblocks |
| 安装导轨 | Without | 安装样式 | Cable |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 锁定特性 | Latch Blocks |
| 触头材料 | Phosphor Bronze | 线缆终端 | Assembled |
| 壳体材料 | Thermoplastic | 面板安装类型 | With |
| 端接样式 | With | 触点数 | 68 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] |
| 位数 | 68 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.05-0.09² [30-28] |
| 第一连接器安装类型 | :Cable | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | SCSI | 制动位 | Without |
| 连接器性别 | RCP | 系列 | Series III |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5786090-7
te connectivity / amp
Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube D-Sub Standard Connectors 68 POS A/P PLUG .050 Series Cable Connectors (SCSI) CONN PLUG 68POS RIBBON .050 GOLD Conn,D-Ribbon,CablePlug,68Pos,STR,IIIS Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Ribbon CableRibbon Cable Centerline Spacing = .64 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, SCSI, PLUG IDC/IDT, 68WAY Conn;D-Ribbon;CablePlug;68Pos;STR;IIISeries;IDC-Ribbon;30AWG AMPLIMITE .050 Series 68 Position Plug .050 IDC Ribbon Connector 68 POS A/P PLUG,25 CL
