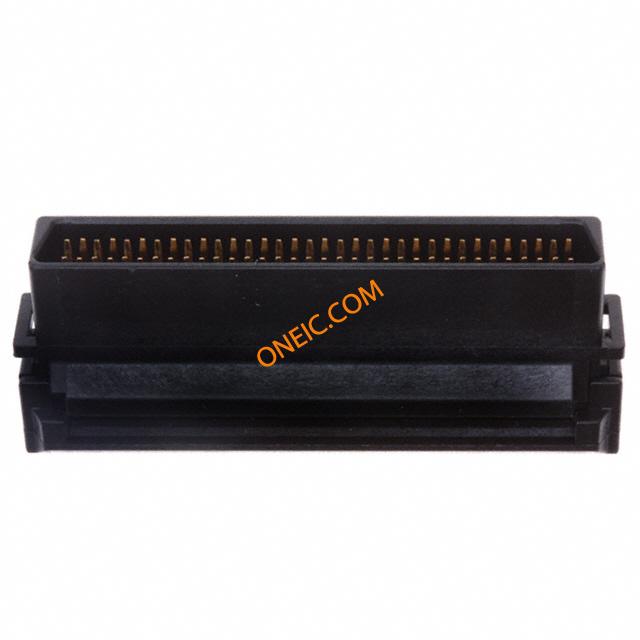

5786090-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube D-Sub Standard Connectors 68 POS A/P PLUG .050 Series Cable Connectors (SCSI) CONN PLUG 68POS RIBBON .050 GOLD Conn,D-Ribbon,CablePlug,68Pos,STR,IIIS Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Ribbon CableRibbon Cable Centerline Spacing = .64 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, SCSI, PLUG IDC/IDT, 68WAY Conn;D-Ribbon;CablePlug;68Pos;STR;IIISeries;IDC-Ribbon;30AWG AMPLIMITE .050 Series 68 Position Plug .050 IDC Ribbon Connector 68 POS A/P PLUG,25 CL |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 680 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 最大额定电流 | 1 A |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 10.75 mm |
| 间距 | 1.27 mm | 高度 | 20.35 mm |
| 重量 | 0.009 | 包装方式 | Tube |
| 电缆类型 | Ribbon Cable | 屏蔽类型 | No |
| 端接方式 | IDT | 触头类型 | Signal |
| 第二连接器 | Without | 安装类型 | Cable Mount |
| 连接器类型 | IDC | 接触镀层 | Gold |
| 安装导轨 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Nickel |
| 连接器样式 | D-Type | 触头材料 | Phosphor Bronze |
| 线缆终端 | Black | 壳体材料 | PBT - GF 30 |
| 总长度 | 51.5 mm | 包装数量 | Tube |
| 面板安装类型 | Without | 端接样式 | Solder |
| 触点数 | 68 | 接触件端接 | :IDC / IDT |
| 位数 | 68 | 排距 - 配合 | 0.64 [0.025] |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.05² [30] |
| 第一连接器安装类型 | :Cable | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | SCSI | 制动位 | Without |
| 连接器性别 | PL | 系列 | Series III |
| 产品特性 | Feed Through | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 Port |
环境参数
| 工作温度 | - 55 C to + 105 C | 结工作温度 | 105C |
